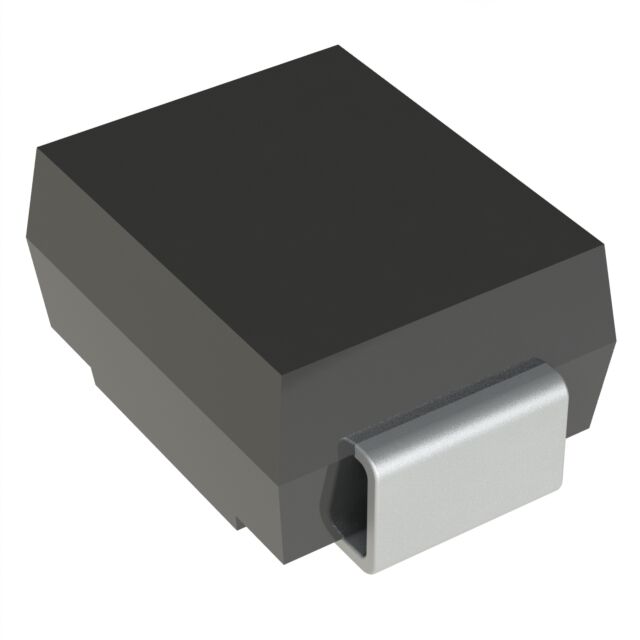

SMBJ26CA-QH

Active

Bourns Inc.

TVS DIODE 26VWM 42.1VC DO214AA

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE 26VWM 42.1VC DO214AA

Technical Specifications

Parameters and characteristics for this part

Specification	SMBJ26CA-QH

Applications	Telecom
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	14.3 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	600 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Type	Zener
Voltage - Breakdown (Min) [Min]	28.9 V
Voltage - Clamping (Max) @ Ipp [Max]	42.1 V
Voltage - Reverse Standoff (Typ)	26 V

Part	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Type	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Package / Case	Supplier Device Package	Supplier Device Package	Applications	Bidirectional Channels [custom]	Grade	Qualification
Bourns Inc. SMBJ26A	600 W	28.9 V	Zener	14.3 A	26 V	1	-55 °C	150 °C	42.1 V	Surface Mount	DO-214AA SMB	SMB	DO-214AA	General Purpose
Bourns Inc. SMBJ26CA	600 W	28.9 V	Zener	14.3 A	26 V		-55 °C	150 °C	42.1 V	Surface Mount	DO-214AA SMB	SMB	DO-214AA	General Purpose	1
Bourns Inc. SMBJ26CA-QH	600 W	28.9 V	Zener	14.3 A	26 V		-55 °C	150 °C	42.1 V	Surface Mount	DO-214AA SMB	SMB	DO-214AA	Telecom	1	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

42.1V Clamp 14.3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
