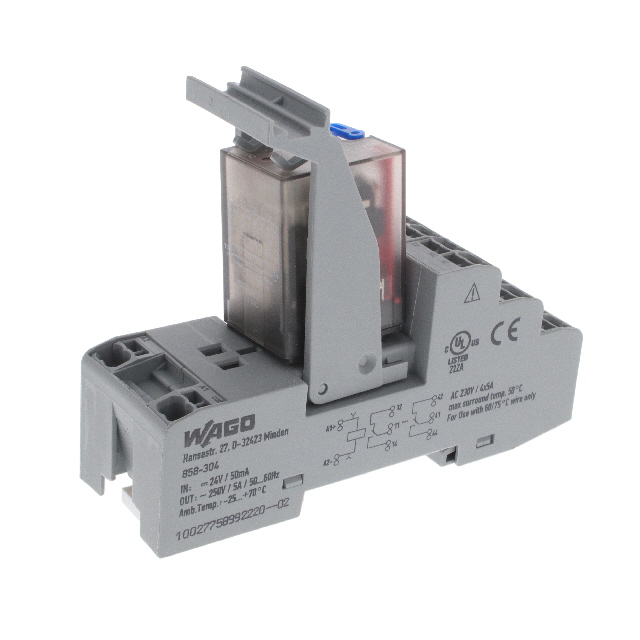

858-304

Active
WAGO Corporation

POWER RELAY, 4PDT, 24 VDC, 5 A, 858 SERIES, DIN RAIL, DC

Deep-Dive with AI

Search across all available documentation for this part.

858-304 - 858-304

858-304

Active
WAGO Corporation

POWER RELAY, 4PDT, 24 VDC, 5 A, 858 SERIES, DIN RAIL, DC

Deep-Dive with AI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 27.57
10$ 26.19
25$ 24.82
50$ 23.44
100$ 22.06
250$ 20.68
500$ 19.30
LCSCPiece 1$ 1.10
200$ 0.44
500$ 0.43
1000$ 0.42
NewarkEach 1$ 32.77
25$ 31.08
100$ 29.26
250$ 27.57
500$ 25.60

Description

General part information

858 Series

The 858-304 is a Relay Socket with 4PDT AgCe contacts, screw terminal, industrial relay for DIN 35 rail. This 858-series relay sockets are designed for conventional industrial relays with standard pin spacing. The sockets accommodate 33.5 to 35.5mm high relays equipped with 4 changeovers. All socket contacts have two Push-in CAGE CLAMP® termination points for either 2 x 0.34mm² to 1.5mm² or 1 x 2.5mm² cross-sections. Push-in CAGE CLAMP® COMPACT allows direct insertion of solid conductors and ferruled conductors from 20AWG/0.5mm² and larger. Speedy socket service rapidly replaces relays without removing conductors.
