WLB32ZC850PBQMB

Active

BANNER ENGINEERING

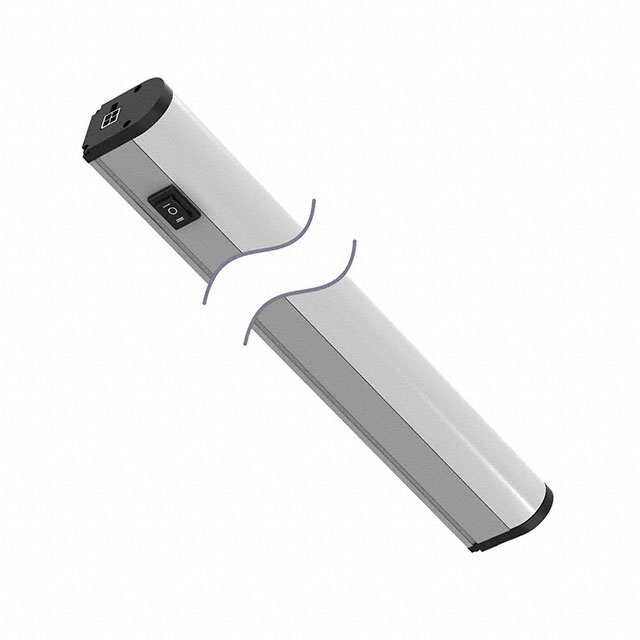

LED LIGHT BAR, INDUSTRIAL, DAYLIGHT WHITE, 264 VAC SUPPLY, 2250 LM, DIFFUSE WINDOW, WLB32 SERIES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LED LIGHT BAR, INDUSTRIAL, DAYLIGHT WHITE, 264 VAC SUPPLY, 2250 LM, DIFFUSE WINDOW, WLB32 SERIES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WLB32ZC850PBQMB	WLB32ZC850 Series

Approval Agency	cULus, CE	cULus, CE
Features	High/Low/Off Switching, Cascadable	High/Low/Off Switching, Cascadable, Shield
Housing Material	Aluminum (Al)	Aluminum (Al)
Illumination Color	White, Cool	White, Cool
Ingress Protection	IP50	IP50
Lens Type	Tubular, Diffused	Tubular, Diffused
Luminous Flux	2250 lm	2250 lm
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Profile (W x H) [x]	32 mm	32 mm
Profile (W x H) [x]	1.26 in	1.26 in
Profile (W x H) [y]	1.81 in	1.81 - 1.89 in
Profile (W x H) [y]	46 mm	46 - 48 mm
Rated Life	50000 Hours	50000 Hours
Termination Style	Connector	Connector
Voltage - Supply [Max]	264 VAC	264 VAC
Voltage - Supply [Min]	90 VAC	90 VAC

LED LIGHT BAR, INDUSTRIAL, DAYLIGHT WHITE, 264 VAC SUPPLY, 2250 LM, DIFFUSE WINDOW, WLB32 SERIES

Part	Luminous Flux	Ingress Protection	Features	Termination Style	Lens Type	Housing Material	Voltage - Supply [Max]	Voltage - Supply [Min]	Illumination Color	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Rated Life
BANNER ENGINEERING WLB32ZC850PBQMB	2250 lm	IP50	Cascadable, High/Low/Off Switching	Connector	Diffused, Tubular	Aluminum (Al)	264 VAC	90 VAC	Cool, White	CE, cULus	-40 °C	70 °C	32 mm	1.81 in	1.26 in	46 mm	50000 Hours
BANNER ENGINEERING WLB32ZC850PBQM	2250 lm	IP50	Cascadable, High/Low/Off Switching	Connector	Diffused, Tubular	Aluminum (Al)	264 VAC	90 VAC	Cool, White	CE, cULus	-40 °C	70 °C	32 mm	1.81 in	1.26 in	46 mm	50000 Hours
BANNER ENGINEERING WLB32ZC850EPBQM	2250 lm	IP50	Cascadable, High/Low/Off Switching, Shield	Connector	Diffused, Tubular	Aluminum (Al)	264 VAC	90 VAC	Cool, White	CE, cULus	-40 °C	70 °C	32 mm	1.89 in	1.26 in	48 mm	50000 Hours

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 241.00
Newark	Each	1	$ 241.00

General part information

LED LIGHT BAR, INDUSTRIAL, DAYLIGHT WHITE, 264 VAC SUPPLY, 2250 LM, DIFFUSE WINDOW, WLB32 SERIES
