165X11869XE

Active

Amphenol CONEC

CONN BACKSHELL 9POS 180DEG GRAY

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 9POS 180DEG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	165X11869XE

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Gray
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

Part	Primary Material	Shielding	Compatible D-Sub Size	Color	Number of Positions	Compatible Shell Size	Features	Cable Type	Hardware	Accessory Type	Cable Exit	Cable Exit
Amphenol CONEC 165X11869XE	Plastic	Unshielded	9pos HD15pos	Gray	9	E	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Two Piece Backshell	180 °
Amphenol CONEC 165X11899XE	Plastic	Unshielded	37pos HD62pos	Gray	37	C	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Two Piece Backshell		180° 90°
Amphenol CONEC 165X11879X	Plastic	Unshielded	15pos HD26pos	Gray	15	A	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Two Piece Backshell		180° 90°
Amphenol CONEC 165X11889X	Plastic	Unshielded	25pos HD44pos	Gray		B	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Two Piece Backshell		180° 90°
Amphenol CONEC 165X11879XE	Plastic	Unshielded	15pos HD26pos	Gray	15	A	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Two Piece Backshell		180° 90°
Amphenol CONEC 165X11869X	Plastic	Unshielded	9pos HD15pos	Gray	9	E	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Two Piece Backshell	180 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

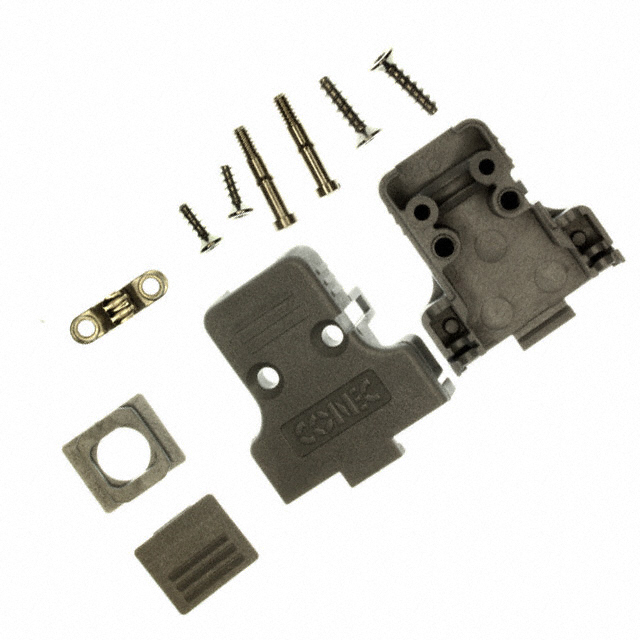

9 Position Two Piece Backshell Connector Gray 180° Unshielded

Technical documentation and resources
