1-84983-6

Active

TE Connectivity AMP Connectors

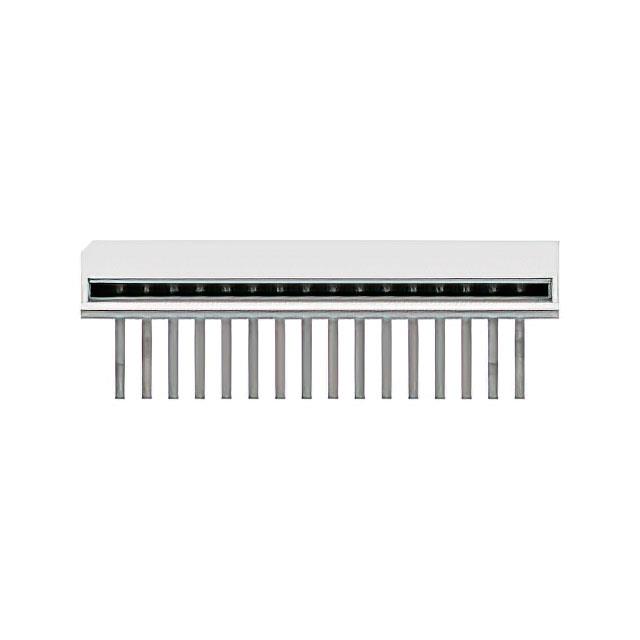

CONN FFC FPC TOP 16POS 1MM R/A

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN FFC FPC TOP 16POS 1MM R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1-84983-6	84983 Series

Cable End Type	Straight	Straight
Connector/Contact Type	Contacts, Top	Contacts, Top
Contact Finish	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Height Above Board	0.118 in	0.118 in
Height Above Board	3 mm	3 mm
Housing Color	White	White
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	16	16
Number of Positions	-	11 - 15
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination	Kinked Pin	Kinked Pin
Voltage Rating	125 VDC	125 VDC

CONN FFC FPC TOP 16POS 1MM R/A

Part	Height Above Board	Height Above Board	Cable End Type	Termination	Contact Finish	Housing Color	Number of Positions	Connector/Contact Type	Housing Material	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Voltage Rating	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Number of Positions
TE Connectivity AMP Connectors 1-84983-6	0.118 in	3 mm	Straight	Kinked Pin	Tin	White	16	Contacts, Top	Polybutylene Terephthalate (PBT), Glass Filled	0.3 mm	0.039 in	1 mm	125 VDC	Phosphor Bronze	Through Hole, Right Angle	85 °C	-20 C	FFC, FPC
TE Connectivity AMP Connectors 1-84983-5	0.118 in	3 mm	Straight	Kinked Pin	Tin	White		Contacts, Top	Polybutylene Terephthalate (PBT), Glass Filled	0.3 mm	0.039 in	1 mm	125 VDC	Phosphor Bronze	Through Hole, Right Angle	85 °C	-20 C	FFC, FPC	15
TE Connectivity AMP Connectors 1-84983-1	0.118 in	3 mm	Straight	Kinked Pin	Tin	White		Contacts, Top	Polybutylene Terephthalate (PBT), Glass Filled	0.3 mm	0.039 in	1 mm	125 VDC	Phosphor Bronze	Through Hole, Right Angle	85 °C	-20 C	FFC, FPC	11
