07100-48
ActiveMechatronics Fan Group
FAN CORD 48"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 07100-48 | 710 Series |
|---|---|---|
| 1st Connector | Fan Terminal Receptacle 180°, Straight | Fan Terminal Receptacle 180°, Straight |
| 2nd Connector | Open Wires | Open Wires, NEMA 1-15 Plug |
| Fits Terminal Size [x] | 4.1 | 4.1 |
| Fits Terminal Size [y] | 0.5 | 0.5 |
| Length | - | 5 - 36 ' |
| Length | - | 1.52 - 91.44 m |
| Length | - | 609.6 mm |
| Length | - | 24 in |
| Number of Conductors | 2 | 2 |
| Operating Temperature | 105 C | 105 C |
| Style | Female Receptacle to Cable | Female Receptacle to Cable, Female Receptacle to Male Plug |
| Wire Gauge | 18 AWG | 18 AWG |
710 Series
FAN CORD 60"
| Part | Fits Terminal Size [x] | Fits Terminal Size [y] | Number of Conductors | 1st Connector | Style | Operating Temperature | Length | Length | Wire Gauge | 2nd Connector | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group 07100-60 | 4.1 | 0.5 | 2 | Fan Terminal Receptacle 180°, Straight | Female Receptacle to Cable | 105 C | 5 ' | 1.52 m | 18 AWG | Open Wires | ||
Mechatronics Fan Group 07100-24 | 4.1 | 0.5 | 2 | Fan Terminal Receptacle 180°, Straight | Female Receptacle to Cable | 105 C | 18 AWG | Open Wires | 609.6 mm | 24 in | ||
Mechatronics Fan Group 07100-48 | 4.1 | 0.5 | 2 | Fan Terminal Receptacle 180°, Straight | Female Receptacle to Cable | 105 C | 18 AWG | Open Wires | ||||
Mechatronics Fan Group 07100-36P | 4.1 | 0.5 | 2 | Fan Terminal Receptacle 180°, Straight | Female Receptacle to Male Plug | 105 C | 36 in | 91.44 cm | 18 AWG | NEMA 1-15 Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
| 10 | $ 2.80 | |||
| 25 | $ 2.72 | |||
| 50 | $ 2.56 | |||
| 100 | $ 2.30 | |||
| 250 | $ 2.27 | |||
| 500 | $ 2.12 | |||
| 1000 | $ 2.09 | |||
Description
General part information
710 Series

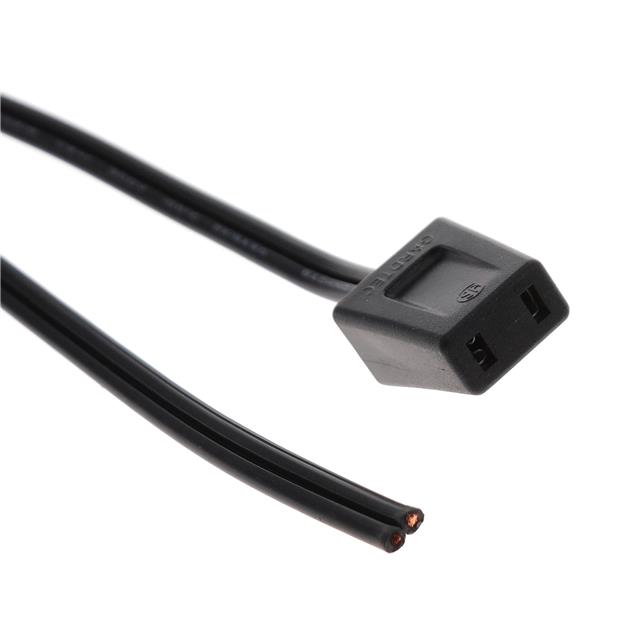

Fan Power Cord Fan Terminal Receptacle 180°, Straight 48.0" (1.22m) Open Wires
