07100-60

Active

Mechatronics Fan Group

FAN CORD 60"

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN CORD 60"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	07100-60	710 Series

1st Connector	Fan Terminal Receptacle 180°, Straight	Fan Terminal Receptacle 180°, Straight
2nd Connector	Open Wires	Open Wires, NEMA 1-15 Plug
Fits Terminal Size [x]	4.1	4.1
Fits Terminal Size [y]	0.5	0.5
Length	5 '	5 - 36 '
Length	1.52 m	1.52 - 91.44 m
Length	-	609.6 mm
Length	-	24 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Cable	Female Receptacle to Cable, Female Receptacle to Male Plug
Wire Gauge	18 AWG	18 AWG

FAN CORD 60"

Part	Fits Terminal Size [x]	Fits Terminal Size [y]	Number of Conductors	1st Connector	Style	Operating Temperature	Length	Length	Wire Gauge	2nd Connector	Length [x]	Length [x]
Mechatronics Fan Group 07100-60	4.1	0.5	2	Fan Terminal Receptacle 180°, Straight	Female Receptacle to Cable	105 C	5 '	1.52 m	18 AWG	Open Wires
Mechatronics Fan Group 07100-24	4.1	0.5	2	Fan Terminal Receptacle 180°, Straight	Female Receptacle to Cable	105 C			18 AWG	Open Wires	609.6 mm	24 in
Mechatronics Fan Group 07100-48	4.1	0.5	2	Fan Terminal Receptacle 180°, Straight	Female Receptacle to Cable	105 C			18 AWG	Open Wires
Mechatronics Fan Group 07100-36P	4.1	0.5	2	Fan Terminal Receptacle 180°, Straight	Female Receptacle to Male Plug	105 C	36 in	91.44 cm	18 AWG	NEMA 1-15 Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

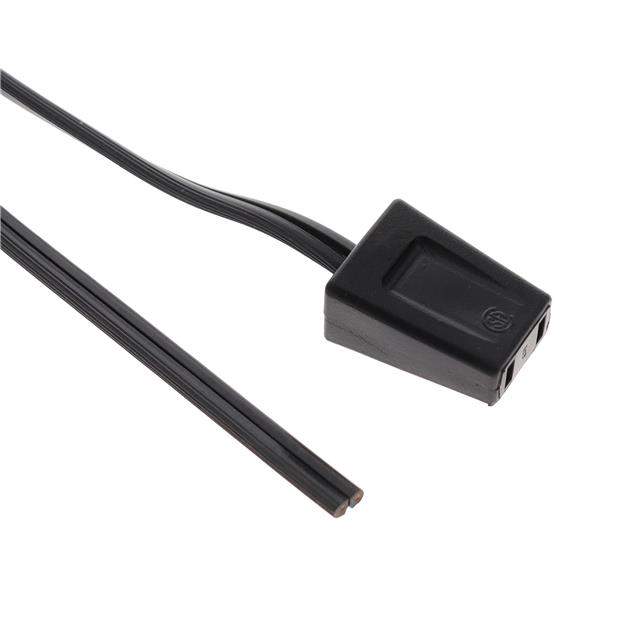

Fan Power Cord Fan Terminal Receptacle 180°, Straight 60.0" (1.52m) Open Wires
