1776261-2
ActiveTE Connectivity AMP Connectors

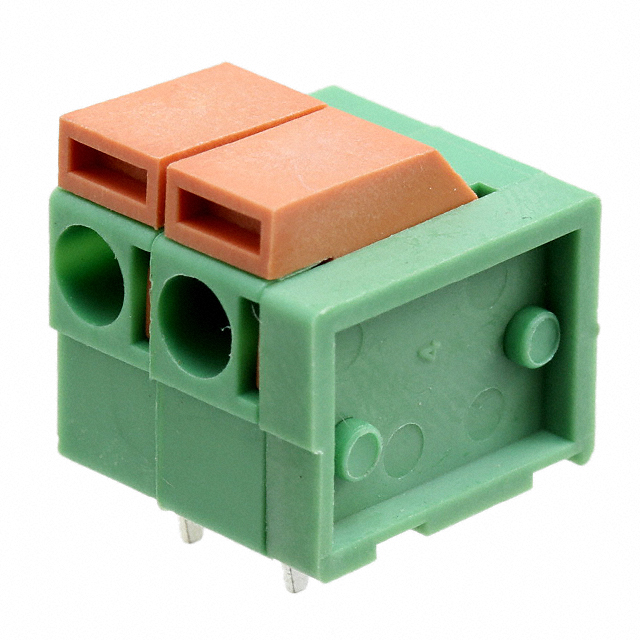

TERM BLK 2POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1776261-2
ActiveTE Connectivity AMP Connectors
TERM BLK 2POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1776261-2 | 776261 Series |
|---|---|---|
| Applications | - | Industrial, Automotive |
| Clamp Material - Plating | Stainless, Steel | Stainless, Steel |
| Color | Green | Green |
| Connector Type | - | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | - | Brass |
| Contact Material - Plating [custom] | Brass - Nickel Tin Plated | Brass - Nickel Tin Plated |
| Contact Shape | - | Circular |
| Contact Type | - | Male Pin |
| Current | 10 A | 10 A |
| Current Rating (Amps) | - | Varies by Wire Gauge |
| Fastening Type | - | Locking Ramp |
| Features | - | Sealable, Mounting Flange |
| Insulation Color | - | Natural, Gray, Black |
| Insulation Material | - | Polybutylene Terephthalate (PBT), Glass Filled |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Mounting Type | Through Hole | Through Hole, Panel Mount |
| Number of Levels | 1 | 1 |
| Number of Positions | - | 14 |
| Number of Positions Loaded | - | All |
| Number of Rows | - | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -55 °C | -55 - -40 °C |
| Pitch - Mating | - | 0.157 " |
| Pitch - Mating | - | 4 mm |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Positions Per Level | 2 | 2 - 5 |
| Row Spacing - Mating | - | 0.157 in |
| Row Spacing - Mating | - | 4 mm |
| Shrouding | - | Shrouded - 4 Wall |
| Style | - | Board to Cable/Wire |
| Termination | - | Solder |
| Voltage | 300 V | 300 V |
| Voltage Rating | - | 250 VAC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring | Push-In Spring, Screwless - Leg Spring |
776261 Series
CONN HEADER VERT 14POS 4MM
| Part | Current Rating (Amps) | Connector Type | Number of Positions Loaded | Contact Shape | Style | Applications | Contact Type | Insulation Color | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Material | Features | Voltage Rating | Contact Material | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Fastening Type | Contact Finish - Mating | Voltage | Clamp Material - Plating | Color | Number of Levels | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Current | Pitch [x] | Pitch [x] | Wire Termination | Contact Material - Plating [custom] | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776261-2 | Varies by Wire Gauge | Header | All | Circular | Board to Cable/Wire | Automotive, Industrial | Male Pin | Natural | Solder | Panel Mount, Through Hole | 0.157 " | 4 mm | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | Mounting Flange, Sealable | 250 VAC | Brass | 14 | 0.157 in | 4 mm | -40 °C | 105 ░C | 3 | Locking Ramp | ||||||||||||||
TE Connectivity AMP Connectors 776261-4 | Varies by Wire Gauge | Header | All | Circular | Board to Cable/Wire | Automotive, Industrial | Male Pin | Gray | Solder | Panel Mount, Through Hole | 0.157 " | 4 mm | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | Mounting Flange, Sealable | 250 VAC | Brass | 14 | 0.157 in | 4 mm | -40 °C | 105 ░C | 3 | Locking Ramp | ||||||||||||||
TE Connectivity AMP Connectors 1-776261-1 | Varies by Wire Gauge | Header | All | Circular | Board to Cable/Wire | Automotive, Industrial | Male Pin | Black | Solder | Panel Mount, Through Hole | 0.157 " | 4 mm | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | Mounting Flange, Sealable | 250 VAC | Brass | 14 | 0.157 in | 4 mm | -40 °C | 125 °C | 3 | Locking Ramp | Gold-Palladium | |||||||||||||
TE Connectivity AMP Connectors 1776261-5 | Through Hole | -55 °C | 105 ░C | 300 V | Stainless, Steel | Green | 1 | Horizontal with Board | 14 AWG | 22 AWG | 10 A | 5 mm | 0.197 in | Push-In Spring, Screwless - Leg Spring | Brass - Nickel Tin Plated | 5 | ||||||||||||||||||||||
TE Connectivity AMP Connectors 1776261-2 | Through Hole | -55 °C | 105 ░C | 300 V | Stainless, Steel | Green | 1 | Horizontal with Board | 14 AWG | 22 AWG | 10 A | 5 mm | 0.197 in | Push-In Spring, Screwless - Leg Spring | Brass - Nickel Tin Plated | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.45 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.29 | |||
| 50 | $ 1.28 | |||
| 100 | $ 1.17 | |||
| 375 | $ 1.16 | |||
| 750 | $ 1.16 | |||
Description
General part information
776261 Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
