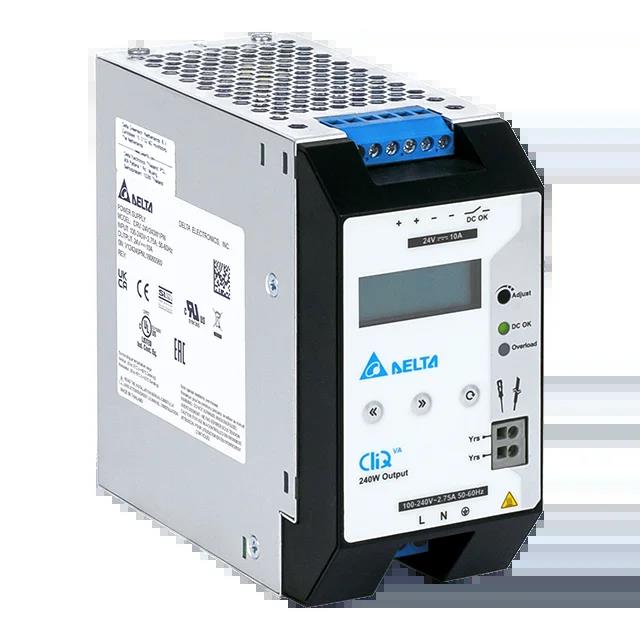

DRV-24V240W1PN

Active

Delta Electronics

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	DRV-24V240W1PN

AC Voltage - Input [Max]	276 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CE, CB Scheme, EN, UL, SIQ
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	88 V
Efficiency	94.73 %
Features	Universal Input, IP20, Adjustable Output, PFC
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	240 W
Size / Dimension [x]	5.47 in
Size / Dimension [x]	139 mm
Size / Dimension [y]	60 mm
Size / Dimension [y]	2.36 "
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	55032, 50581, 61000-3-2, 61204-3, 61000-3-3, 55011, 61000-6-3, 61000-6-1, 61000-6-2, 60950-1, 61000-6-4, 508, 55024
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Features	Efficiency	Number of Outputs	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Standard Number	Applications	Approval Agency	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Max) [Max]
Delta Electronics DRV-24V240W1PN	5.47 in	60 mm	139 mm	124 mm	4.88 "	2.36 "	24 V	88 V	Adjustable Output IP20 PFC Universal Input	94.73 %	1	240 W	-25 °C	70 °C	10 A	3000 V	50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 61204-3	Industrial ITE (Commercial)	CB Scheme CE EN SIQ UL	AC or DC	276 VAC	85 VAC	375 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	32	$ 270.61
