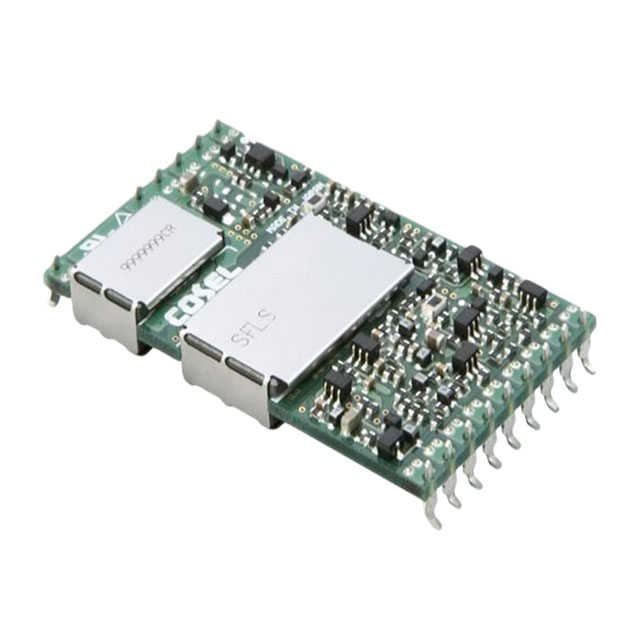

SFLS10483R3B
ActiveCosel USA, Inc.
DC DC CONVERTER 3.3V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFLS10483R3B
ActiveCosel USA, Inc.
DC DC CONVERTER 3.3V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFLS10483R3B |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 87 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-SMD Module, 15 Leads |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 38.7 mm |
| Size / Dimension [x] | 1.52 in |
| Size / Dimension [y] | 0.88 " |
| Size / Dimension [y] | 22.4 mm |
| Size / Dimension [z] | 0.17 in |
| Size / Dimension [z] | 4.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 76 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.75 | |
Description
General part information
SFLS10483 Series
Isolated Module DC DC Converter 1 Output 3.3V 3A 36V - 76V Input
