Q-0704H000R.25M

Active

Amphenol Custom Cable

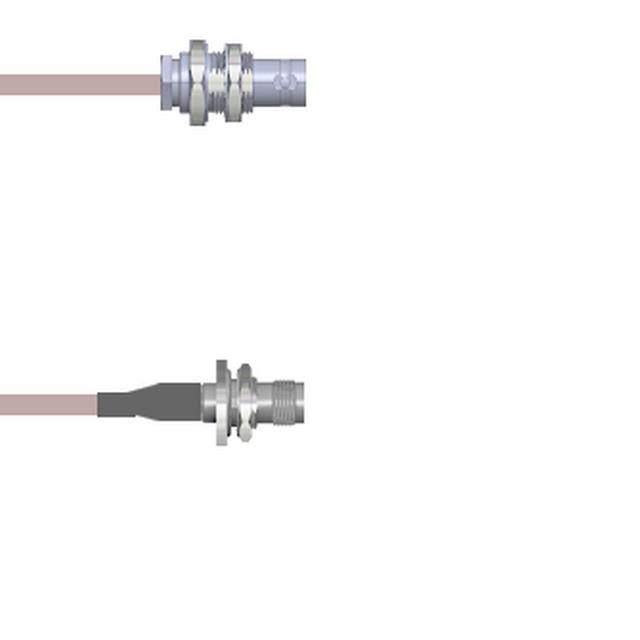

CBL ASSY BNC-TNC JCK-JCK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0704H000R.25M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JCK-JCK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0704H000R.25M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0704H0 Series

Part	Color	Length	Length	Length	Cable Type	Features	1st Connector Mounting Type	Style	2nd Contact Gender	Frequency - Max [Max]	1st Connector Mounting Feature	1st Contact Gender	2nd Connector Mounting Type	2nd Connector	1st Connector	Overall Impedance	2nd Connector Mounting Feature	Length [x]	Length [x]
Amphenol Custom Cable Q-0704H000R084i	Copper	84 in	2.1 m	7 ft	RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R003i	Copper	3 in	76.2 mm		RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R009i	Copper	9 "	228.6 mm		RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R036i	Copper	36 in	91.44 cm		RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R060i	Copper	5 '	1.5 m	5 ft	RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R012i	Copper	12 "	304.8 mm		RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R.25M	Copper				RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut	9.843 "	250 mm
Amphenol Custom Cable Q-0704H000R108i	Copper	108 in	2.7 m	9 ft	RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R048i	Copper	48 in	1200 mm	4 ft	RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0704H000R002M	Copper	78.7 in	2 m	6.6 ft	RG-316 DB	Shielded	Panel Mount	BNC to TNC	Female	2 GHz	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	BNC Jack	50 Ohms	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 140.23
		25	$ 137.55
		50	$ 134.88
		100	$ 132.21
		250	$ 129.53

Description

General part information

Q-0704H0 Series

Cable Assembly Coaxial BNC to TNC RG-316 DB 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
