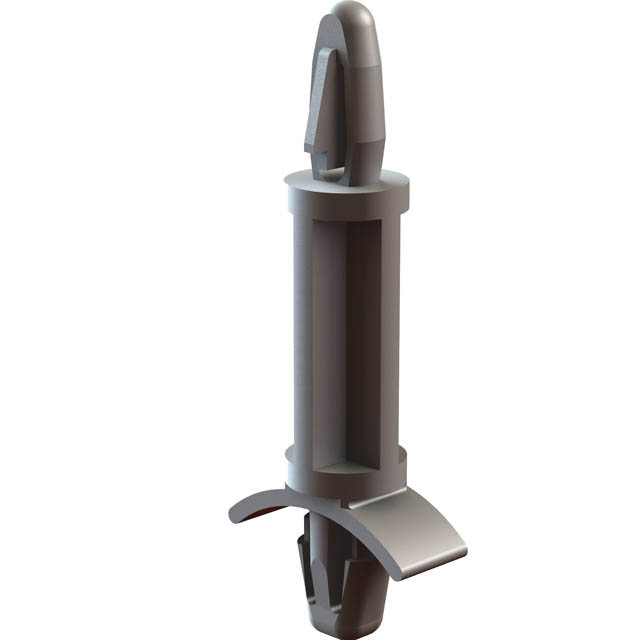

LCBS-5-HT

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 5/16"

Deep-Dive with AI

Search across all available documentation for this part.

LCBS-5-HT

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 5/16"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCBS-5-HT

Between Board Height	0.3125 in
Between Board Height	7.95 mm
Between Board Height	0.313 "
Features	High Temperature, Winged
Holding Type	Snap Lock
Length - Overall [x]	26.4 mm
Length - Overall [x]	1.039 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	0.08 "
Mounting Panel Thickness [Max]	2.03 mm
Mounting Panel Thickness [Min]	1.4 mm
Mounting Panel Thickness [Min]	0.055 "
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

LCBS-5 Series

Part	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Type	Material	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Holding Type	Features	Between Board Height	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Length - Overall	Length - Overall [x]	Length - Overall [x]	Between Board Height
Essentra Access Solutions LCBS-5-12-01	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.6 mm	0.063 in	0.157 "	3.99 mm	4.8 mm	0.189 in	Snap Lock	Winged	0.75 in	0.75 in	19.05 mm
Essentra Access Solutions LCBS-5-01	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.57 mm	0.062 "	0.157 "	3.99 mm			Snap Lock	Winged	0.3125 in	0.313 "	7.95 mm	0.187 in	4.75 mm	3 in	0.0625 "	26.5 mm	1.043 "
Essentra Access Solutions LCBS-5-7-01	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.6 mm	0.063 in	0.157 "	3.99 mm	4.8 mm	0.189 in	Snap Lock	Winged	11.13 mm	0.438 in	0.4375 in
Essentra Access Solutions LCBS-5-HT	1.4 mm	2.03 mm	0.055 "	0.08 "	Snap Lock	Nylon	1.57 mm	0.062 "	0.157 "	3.99 mm			Snap Lock	High Temperature Winged	0.3125 in	0.313 "	7.95 mm	0.187 in	4.75 mm	3 in	0.0625 "		1.039 in	26.4 mm
Essentra Access Solutions LCBS-5-19	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.57 mm	0.062 "	0.157 "	3.99 mm			Snap Lock	Winged	0.3125 in	0.313 "	7.95 mm	0.187 in	4.75 mm	3 in	0.0625 "	26.5 mm	1.043 "
Essentra Access Solutions LCBS-5-20-01	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.6 mm	0.063 in	0.157 "	3.99 mm	4.8 mm	0.189 in	Snap Lock	Winged		1.25 in	31.75 mm
Essentra Access Solutions LCBS-5-18-01	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.6 mm	0.063 in	0.157 "	3.99 mm	4.8 mm	0.189 in	Snap Lock	Winged		1.125 in	28.58 mm								1 1/8
Essentra Access Solutions LCBS-5-22-01	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.6 mm	0.063 in	0.157 "	3.99 mm	4.8 mm	0.189 in	Snap Lock	Winged		1.375 in	34.93 mm
Essentra Access Solutions LCBS-5-4-01	0.79 mm	1.98 mm	0.031 in	0.078 "	Snap Lock	Nylon	1.6 mm	0.063 in	0.157 "	3.99 mm	4.8 mm	0.189 in	Snap Lock	Winged	0.25 in	0.25 in	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.35

Description

General part information

LCBS-5 Series

Board Support Snap Lock / Snap Lock Nylon 0.313" (7.95mm) 5/16"
