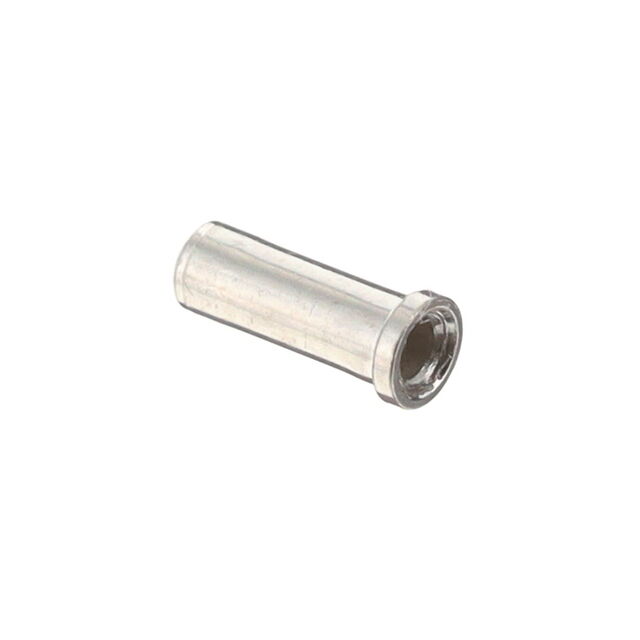

0329-0-15-01-34-01-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0329-0-15-01-34-01-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Features	Knockout Bottom
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall [x]	0.221 "
Length - Overall [x]	5.61 mm
Mounting Hole Diameter [diameter]	1.91 mm
Mounting Hole Diameter [diameter]	0.075 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	5.61 mm
Socket Depth	0.221 in
Tail Type	No Tail
Termination	Solder

0329-0 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Tail Type
Mill-Max Manufacturing Corp. 0329-0-15-15-34-14-10-0	10 Áin	0.25 Ám	Knockout Bottom	Gold	Solder	1.63 mm	0.064 in	2.29 mm	0.09 in	5.61 mm	0.221 in	0.81 mm 1.17 mm	0.046 in	0.032 "	Beryllium Copper	-55 °C	125 °C	1.91 mm	0.075 in	0.221 "	5.61 mm	No Tail
Mill-Max Manufacturing Corp. 0329-0-15-80-34-14-10-0	10 Áin	0.25 Ám	Knockout Bottom	Gold	Solder	1.63 mm	0.064 in	2.29 mm	0.09 in	5.61 mm	0.221 in	0.81 mm 1.17 mm	0.046 in	0.032 "	Beryllium Copper	-55 °C	125 °C	1.91 mm	0.075 in	0.221 "	5.61 mm	No Tail
Mill-Max Manufacturing Corp. 0329-0-15-80-34-27-10-0	30 Áin	0.76 Ám	Knockout Bottom	Gold	Solder	1.63 mm	0.064 in	2.29 mm	0.09 in	5.61 mm	0.221 in	0.81 mm 1.17 mm	0.046 in	0.032 "	Beryllium Copper	-55 °C	125 °C	1.91 mm	0.075 in	0.221 "	5.61 mm	No Tail
Mill-Max Manufacturing Corp. 0329-0-15-01-34-27-10-0	30 Áin	0.76 Ám	Knockout Bottom	Gold	Solder	1.63 mm	0.064 in	2.29 mm	0.09 in	5.61 mm	0.221 in	0.81 mm 1.17 mm	0.046 in	0.032 "	Beryllium Copper	-55 °C	125 °C	1.91 mm	0.075 in	0.221 "	5.61 mm	No Tail
Mill-Max Manufacturing Corp. 0329-0-15-01-34-01-10-0	200 Áin	5.08 Ám	Knockout Bottom	Tin-Lead	Solder	1.63 mm	0.064 in	2.29 mm	0.09 in	5.61 mm	0.221 in	0.81 mm 1.17 mm	0.046 in	0.032 "	Beryllium Copper	-55 °C	125 °C	1.91 mm	0.075 in	0.221 "	5.61 mm	No Tail
Mill-Max Manufacturing Corp. 0329-0-15-15-34-27-10-0	30 Áin	0.76 Ám	Knockout Bottom	Gold	Solder	1.63 mm	0.064 in	2.29 mm	0.09 in	5.61 mm	0.221 in	0.81 mm 1.17 mm	0.046 in	0.032 "	Beryllium Copper	-55 °C	125 °C	1.91 mm	0.075 in	0.221 "	5.61 mm	No Tail
Mill-Max Manufacturing Corp. 0329-0-15-01-34-14-10-0	10 Áin	0.25 Ám	Knockout Bottom	Gold	Solder	1.63 mm	0.064 in	2.29 mm	0.09 in	5.61 mm	0.221 in	0.81 mm 1.17 mm	0.046 in	0.032 "	Beryllium Copper	-55 °C	125 °C	1.91 mm	0.075 in	0.221 "	5.61 mm	No Tail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.39
		10	$ 1.17
		100	$ 1.05
		1000	$ 0.77
		5000	$ 0.67
		10000	$ 0.64

Description

General part information

0329-0 Series

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder
