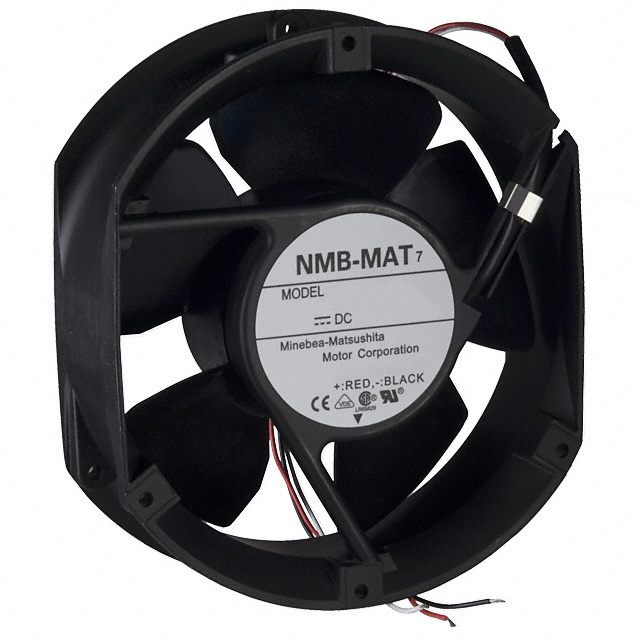

Specification	5920PL-07W-B79-D50

Air Flow	300 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	0.51 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	63.2 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	24.5 W
RPM	4000 RPM
Size / Dimension Height	150 mm
Size / Dimension Length	172 mm
Size / Dimension Shape	Rectangular/Rounded
Static Pressure	0.909 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	48 VDC
Voltage Range (Max)	60 VDC
Voltage Range (Min)	25 VDC
Weight	1.8 lbs
Width	2 in

5920PL Series

Part	Bearing Type	Termination Leads Count	Termination Type	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Static Pressure	Width	Air Flow	Fan Type	Noise	Voltage - Rated	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	RPM	Approval Agency	Weight	Current Rating	Material - Frame	Material - Blade	Voltage Range (Max)	Voltage Range (Min)	Features
NMB TECHNOLOGIES 5920PL-04W-B30-D00	Ball	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	13.8 W	0.562 in H2O	2 in	225 CFM	Tubeaxial	55 dB	12 VAC	150 mm	Rectangular/Rounded	172 mm	3150 RPM	CE CSA UL VDE	1.8 lbs	1.15 A	Aluminum	Plastic	18 VDC	6 VDC
NMB TECHNOLOGIES 5920PL-04W-B39-D50	Ball	3	Wire Leads	3 Wire Leads	158 °F	14 °F	13.8 W	0.562 in H2O	2 in	225 CFM	Tubeaxial	55 dB	12 VAC	150 mm	Rectangular/Rounded	172 mm	3150 RPM	CE CSA UL VDE	1.8 lbs	1.15 A	Aluminum	Plastic	18 VDC	6 VDC	Speed Sensor (Tach)
NMB TECHNOLOGIES 5920PL-05W-B39-D00	Ball	3	Wire Leads	3 Wire Leads	158 °F	14 °F	13.2 W	0.562 in H2O	2 in	225 CFM	Tubeaxial	55 dB	24 VAC	150 mm	Rectangular/Rounded	172 mm	3150 RPM	CE CSA UL VDE	1.8 lbs	0.55 A	Aluminum	Plastic	30 VDC	12 V	Locked Rotor Sensor
NMB TECHNOLOGIES 5920PL-05W-B40-D00	Ball	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	15.8 W	0.622 in H2O	2 in	240 CFM	Tubeaxial	58 dB	24 VAC	150 mm	Rectangular/Rounded	172 mm	3350 RPM	CE CSA UL VDE	1.8 lbs	660 mA	Aluminum	Plastic	30 VDC	12 V
NMB TECHNOLOGIES 5920PL-05W-B60-D00	Ball	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	21.1 W	0.84 in H2O	2 in	280 CFM	Tubeaxial	62.5 dB	24 VAC	150 mm	Rectangular/Rounded	172 mm	3750 RPM	CE CSA UL VDE	1.8 lbs	880 mA	Aluminum	Plastic	30 VDC	12 V
NMB TECHNOLOGIES 5920PL-05W-B10-D00	Ball	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	8.64 W	0.371 in H2O	2 in	180 CFM	Tubeaxial	50 dB	24 VAC	150 mm	Rectangular/Rounded	172 mm	2550 RPM	CE CSA UL VDE	1.8 lbs	360 mA	Aluminum	Plastic	30 VDC	12 V
NMB TECHNOLOGIES 5920PL-05W-B20-D00	Ball	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	11 W	0.371 in H2O	2 in	200 CFM	Tubeaxial	53 dB	24 VAC	150 mm	Rectangular/Rounded	172 mm	2850 RPM	CE CSA UL VDE	1.8 lbs	460 mA	Aluminum	Plastic	30 VDC	12 V
NMB TECHNOLOGIES 5920PL-07W-B69-D50	Ball	3	Wire Leads	3 Wire Leads	158 °F	14 °F	22.6 W	0.84 in H2O	2 in	280 CFM	Tubeaxial	62.5 dB	48 VDC	150 mm	Rectangular/Rounded	172 mm	3750 RPM	CE CSA UL VDE	1.8 lbs	0.47 A	Aluminum	Plastic	60 VDC	25 VDC	Speed Sensor (Tach)
NMB TECHNOLOGIES 5920PL-07W-B49-D50	Ball	3	Wire Leads	3 Wire Leads	158 °F	14 °F	15.8 W	0.622 in H2O	2 in	240 CFM	Tubeaxial	58 dB	48 VDC	150 mm	Rectangular/Rounded	172 mm	3350 RPM	CE CSA UL VDE	1.8 lbs	0.33 A	Aluminum	Plastic	60 VDC	25 VDC	Speed Sensor (Tach)
NMB TECHNOLOGIES 5920PL-07W-B79-D50	Ball	3	Wire Leads	3 Wire Leads	158 °F	14 °F	24.5 W	0.909 in H2O	2 in	300 CFM	Tubeaxial	63.2 dB	48 VDC	150 mm	Rectangular/Rounded	172 mm	4000 RPM	CE CSA UL VDE	1.8 lbs	0.51 A	Aluminum	Plastic	60 VDC	25 VDC	Speed Sensor (Tach)
