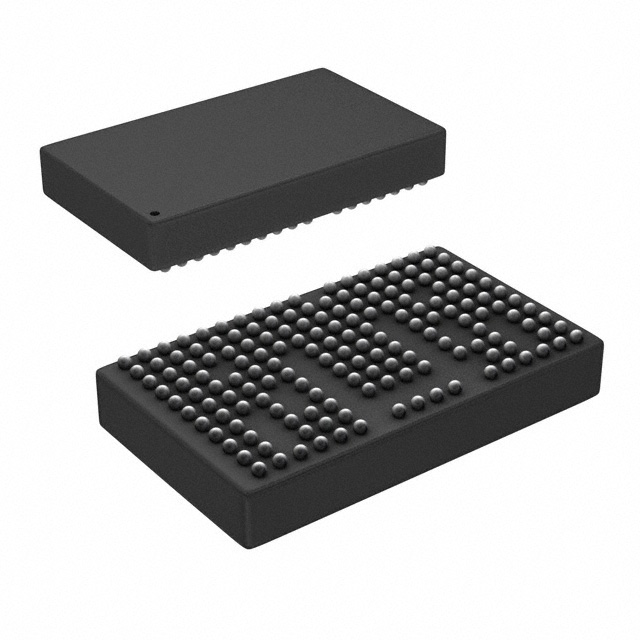

IP1202PBF
ObsoleteInfineon Technologies
IC REG BUCK ADJ SGL/DL 161BGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IP1202PBF
ObsoleteInfineon Technologies
IC REG BUCK ADJ SGL/DL 161BGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IP1202PBF |
|---|---|
| Current - Output | 15 A, 30 A |
| Frequency - Switching [Max] | 460 kHz |
| Frequency - Switching [Min] | 170 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 161-BBGA Power Module |
| Supplier Device Package | 161-BGA Power Block (15.5x9.25) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 5.5 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IP1202 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 or 2 Output 30A, 15A 161-BBGA Power Module
