917981-1

Active

TE Connectivity AMP Connectors

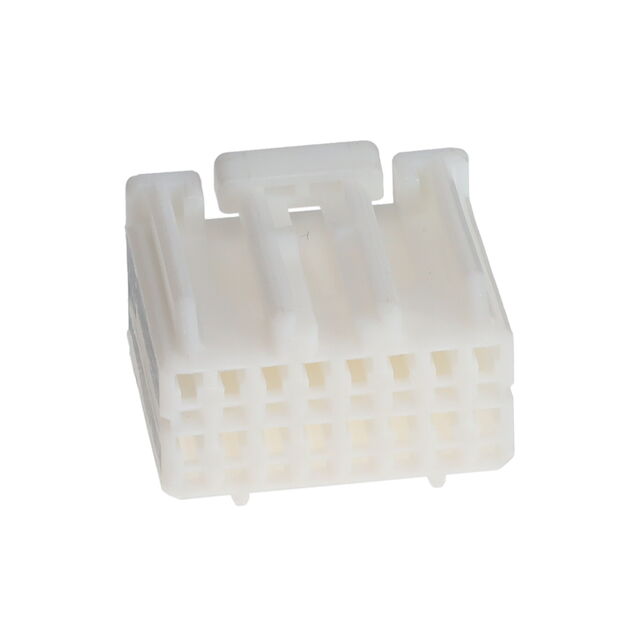

CONN PLUG HSG 16POS 3.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 16POS 3.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	917981-1

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	3 mm
Pitch [x]	0.118 in
Row Spacing	0.205 in
Row Spacing	5.2 mm

CONN PLUG HSG 16POS 3.00MM

Part	Contact Type	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Color	Insulation Material	Number of Rows	Note	Fastening Type	Contact Termination	Mounting Type
TE Connectivity AMP Connectors 917981-1	Female Socket	Plug	16	-30 ░C	105 ░C	3 mm	0.118 in	0.205 in	5.2 mm	White	Polybutylene Terephthalate (PBT)	2	Contacts Not Included	Latch Lock	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Rectangular Connectors - Housings Plug White 0.118" (3.00mm)
