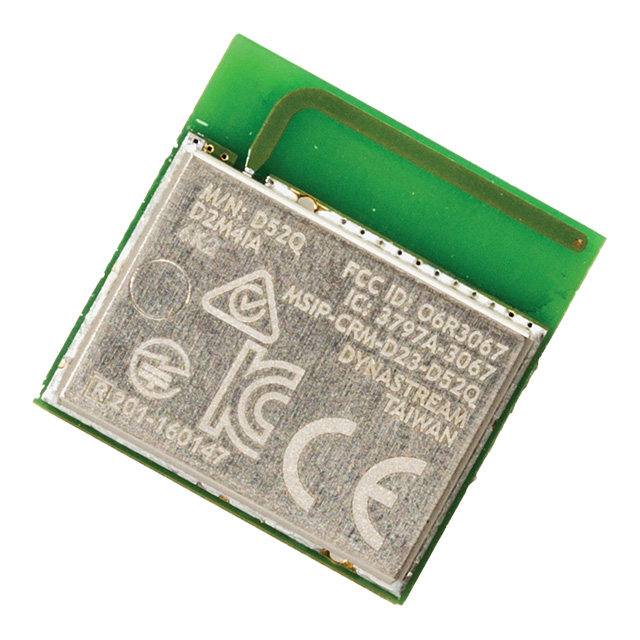

D52QD2M4IA-TRAY

Active

Garmin Canada Inc.

RF TXRX MOD ISM > 1GHZ TRACE SMD

Search across all available documentation for this part.

Active

Garmin Canada Inc.

RF TXRX MOD ISM > 1GHZ TRACE SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM > 1GHz ANT™ Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF TXRX MOD BT TH SMD

Part	Power - Output	Utilized IC / Part	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Mounting Type	Data Rate	Antenna Type	RF Family/Standard	Package / Case	Serial Interfaces	Sensitivity	Current - Transmitting	Current - Receiving
Garmin Canada Inc. D52QD2M4IA-A-REEL	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	Bluetooth v4.2	Surface Mount	60 kbps	Integrated, Trace	Bluetooth	34-SMD Module	I2C, SPI, UART
Garmin Canada Inc. D52QD2M6IA-A-TRAY	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	ANT™	Surface Mount	60 kbps	Integrated, Trace	General ISM > 1GHz	Module	I2C, SPI, UART	-96.5 dBm	16 mA	16 mA
Garmin Canada Inc. D52QD2M4IA-TRAY	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	ANT™	Surface Mount	60 kbps	Integrated, Trace	General ISM > 1GHz	34-SMD Module	I2C, SPI, UART	-96.5 dBm	16 mA	16 mA
Garmin Canada Inc. D52QD2M4IA-REEL	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	Bluetooth v4.2	Surface Mount	60 kbps	Integrated, Trace	Bluetooth	34-SMD Module	I2C, SPI, UART
