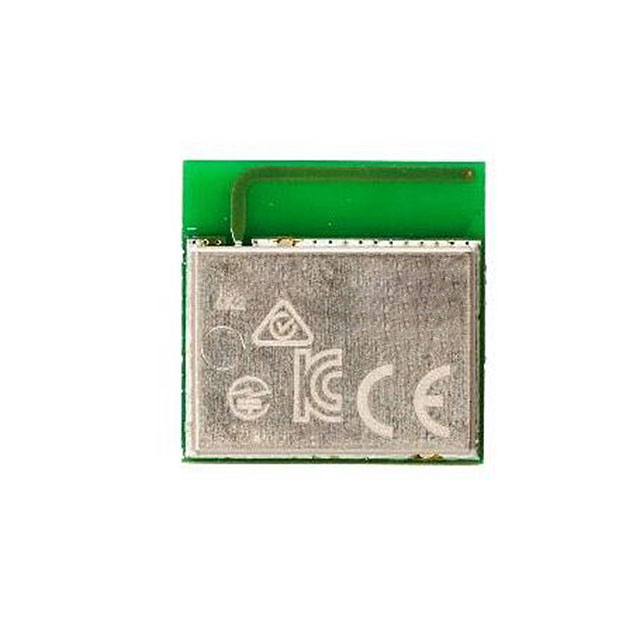

D52QD2M4IA-REEL

Active

Garmin Canada Inc.

RF TXRX MOD BT TH SMD

Search across all available documentation for this part.

Active

Garmin Canada Inc.

RF TXRX MOD BT TH SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	800	$ 10.54

General part information

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF TXRX MOD BT TH SMD

Part	Power - Output	Utilized IC / Part	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Mounting Type	Data Rate	Antenna Type	RF Family/Standard	Package / Case	Serial Interfaces	Sensitivity	Current - Transmitting	Current - Receiving
Garmin Canada Inc. D52QD2M4IA-A-REEL	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	Bluetooth v4.2	Surface Mount	60 kbps	Integrated, Trace	Bluetooth	34-SMD Module	I2C, SPI, UART
Garmin Canada Inc. D52QD2M6IA-A-TRAY	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	ANT™	Surface Mount	60 kbps	Integrated, Trace	General ISM > 1GHz	Module	I2C, SPI, UART	-96.5 dBm	16 mA	16 mA
Garmin Canada Inc. D52QD2M4IA-TRAY	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	ANT™	Surface Mount	60 kbps	Integrated, Trace	General ISM > 1GHz	34-SMD Module	I2C, SPI, UART	-96.5 dBm	16 mA	16 mA
Garmin Canada Inc. D52QD2M4IA-REEL	4 dBm	nRF52832	2.4 GHz	3.6 V	1.7 V	85 °C	-40 °C	Bluetooth v4.2	Surface Mount	60 kbps	Integrated, Trace	Bluetooth	34-SMD Module	I2C, SPI, UART
