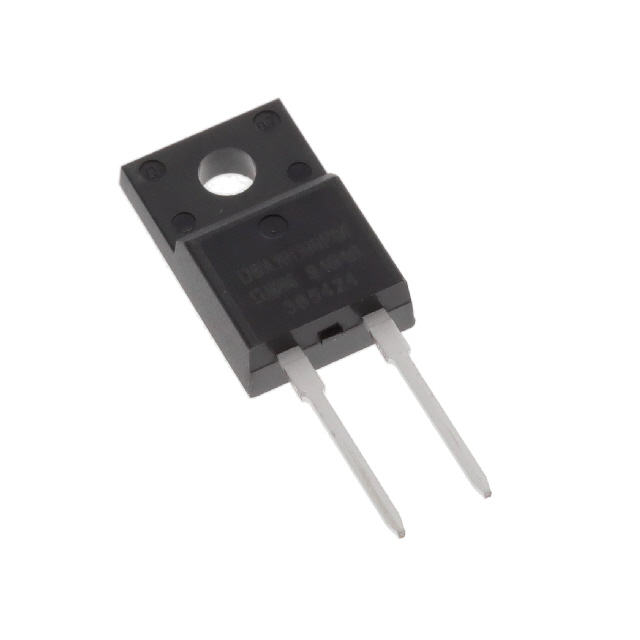

DSA10I100PM

Active

IXYS

DIODE SCHOTTKY 100V 10A TO220FP

Search across all available documentation for this part.

Active

IXYS

DIODE SCHOTTKY 100V 10A TO220FP

Technical Specifications

Parameters and characteristics for this part

Specification	DSA10I100PM

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-2 Full Pack, Isolated Tab
Speed	200 mA, 500 ns
Supplier Device Package	TO-220FP
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	890 mV

Part	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)
IXYS DSA10I100PM	200 mA 500 ns	TO-220-2 Full Pack Isolated Tab	100 V	150 °C	-55 °C	Through Hole	890 mV	TO-220FP	Schottky	200 µA	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	32000	$ 0.58

General part information

Diode 100 V 10A Through Hole TO-220FP
