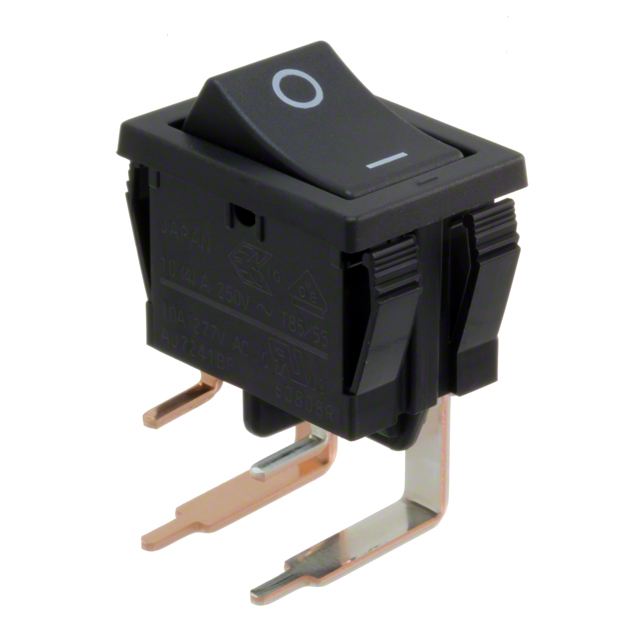

AJ7241BF

Active

Panasonic Electric Works

SWITCH ROCKER DPST 10A 250V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH ROCKER DPST 10A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	AJ7241BF

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	cULus, VDE, ENEC
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Mounting Type	Snap-In, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	PC Pin
Voltage Rating - AC	250 V

Part	Termination Style	Electrical Life	Color - Actuator/Cap	Voltage Rating - AC	Actuator Marking	Mounting Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Circuit
Panasonic Electric Works AJ7241BF	PC Pin	10000 Cycles	Black	250 V	O I	Panel Mount Right Angle Snap-In	cULus ENEC VDE	-25 °C	85 °C	Concave (Curved)	On-Off	10 A	12.9 mm	Rectangular	19.2 mm	DPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 10A (AC) 250 V Panel Mount, Snap-In, Right Angle
