R123326003
ActiveRadiall USA, Inc.

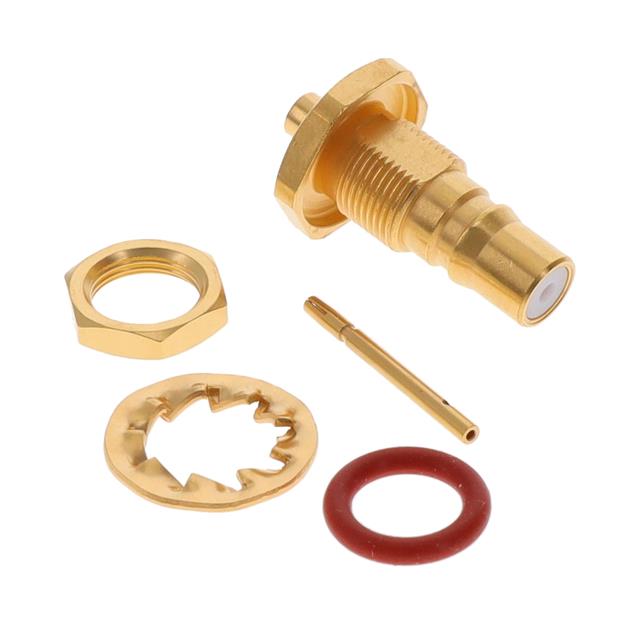

RF CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, SOLDER TERMINAL, JACK
Deep-Dive with AI
Search across all available documentation for this part.
R123326003
ActiveRadiall USA, Inc.
RF CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, SOLDER TERMINAL, JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R123326003 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.25 dB |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.88 | |
| 10 | $ 16.36 | |||
| 25 | $ 15.51 | |||
| 50 | $ 15.28 | |||
| 100 | $ 13.48 | |||
| 300 | $ 12.58 | |||
| 500 | $ 12.31 | |||
Description
General part information
R12332 Series
QMA Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
