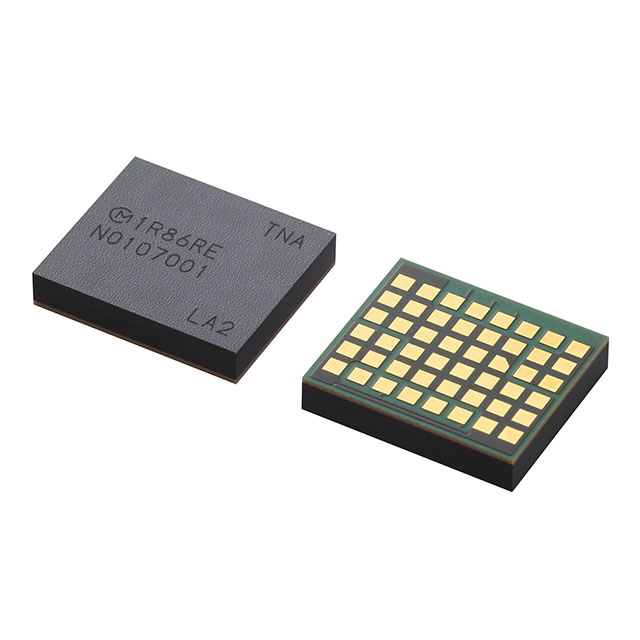

MYTNA1R86RELA2RA

Active

Murata Power Solutions Inc.

POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 6 TO 14.4V IN, 0.7 TO 1.8V OUT, 6A OUT, 1MHZ, LGA-48

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 6 TO 14.4V IN, 0.7 TO 1.8V OUT, 6A OUT, 1MHZ, LGA-48

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 1.8V 6A 6V - 14.4V Input

Technical documentation and resources

Specification	MYTNA1R86RELA2RA	MYTNA1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	6 A	4 - 6 A
Efficiency	90 %	90 - 90.5 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	10.5 mm	10.5 mm
Size / Dimension [x]	0.41 "	0.41 "
Size / Dimension [y]	0.35 "	0.35 "
Size / Dimension [y]	9 mm	9 mm
Size / Dimension [z]	0.08 in	0.08 in
Size / Dimension [z]	2.1 mm	2.1 mm
Supplier Device Package	48-LGA (10.5x9)	48-LGA (10.5x9)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14.4 V	14.4 V
Voltage - Input (Min) [Min]	6 V	6 V
Voltage - Output 1 [Max]	1.8 V	1.8 V
Voltage - Output 1 [Min]	0.7 V	0.7 V

Part	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Supplier Device Package	Voltage - Input (Min) [Min]	Number of Outputs	Features	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Efficiency
Murata Power Solutions Inc. MYTNA1R86RELA2RAD	6 A	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Non-Isolated PoL Module	48-LGA (10.5x9)	6 V	1	Adjustable Output, Remote On/Off, Remote Sense	0.7 V	1.8 V	14.4 V	90 %
Murata Power Solutions Inc. MYTNA1R84RELA2RAD	4 A	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Non-Isolated PoL Module	48-LGA (10.5x9)	6 V	1	Adjustable Output, Remote On/Off, Remote Sense	0.7 V	1.8 V	14.4 V	90.5 %
Murata Power Solutions Inc. MYTNA1R86RELA2RA	6 A	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Non-Isolated PoL Module	48-LGA (10.5x9)	6 V	1	Adjustable Output, Remote On/Off, Remote Sense	0.7 V	1.8 V	14.4 V	90 %
Murata Power Solutions Inc. MYTNA1R84RELA2RA	4 A	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Non-Isolated PoL Module	48-LGA (10.5x9)	6 V	1	Adjustable Output, Remote On/Off, Remote Sense	0.7 V	1.8 V	14.4 V	90.5 %
