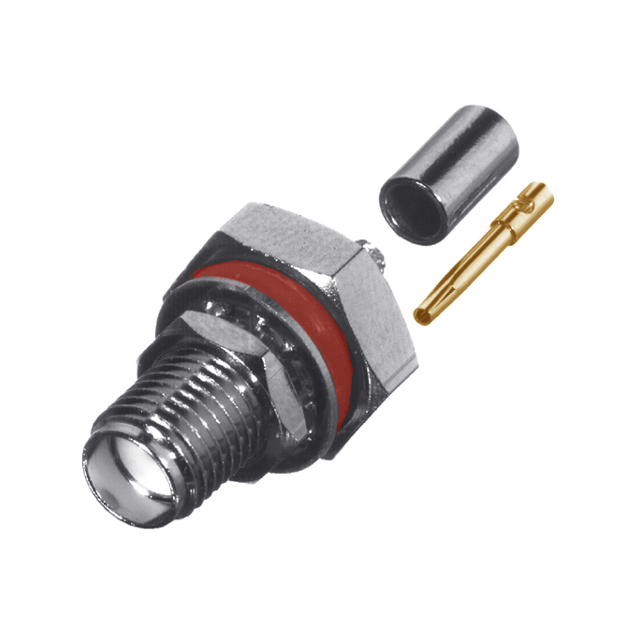

RSA-3252-B-03

Active

RF Industries

SMA FEMALE BH CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

SMA FEMALE BH CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RSA-3252-B-03

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 188, 188A, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Impedance	Cable Group	Connector Type	Contact Termination	Number of Ports	Body Finish	Mounting Feature	Center Contact Material	Center Contact Plating	Housing Color	Shield Termination	Body Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Frequency - Max [Max]	Voltage Rating
RF Industries RSA-3252-B-03	50 Ohms	188 188A 316 RG-174	Female Socket Jack	Solder	1	Nickel	Bulkhead - Front Side Nut	Beryllium Copper	Gold	Silver	Crimp	Brass	Polytetrafluoroethylene (PTFE)	-65 ░C	85 °C	SMA	12.4 GHz	375 V
RF Industries RSA-3252-C3	50 Ohms	122 82907 88240 89907 9158S Alpha 9859 Belden 82240 RG-58 Plenum	Female Socket Jack	Crimp	1	Nickel	Bulkhead - Front Side Nut		Gold	Silver	Crimp		Polytetrafluoroethylene (PTFE)			SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
