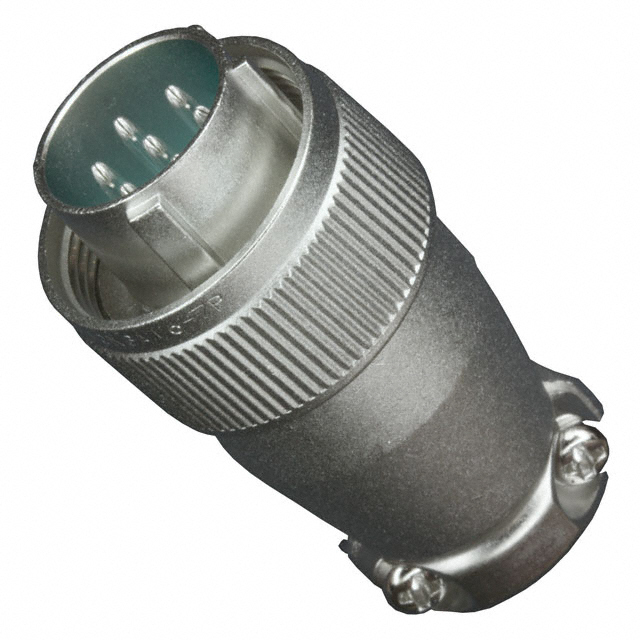

SRCN6A16-7P
ActiveJAE Electronics
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
SRCN6A16-7P
ActiveJAE Electronics
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRCN6A16-7P |
|---|---|
| Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Cable Opening [custom] | 0.453 in |
| Cable Opening [custom] | 11.51 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Insert Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 350 V, 250 VAC |
SRCN6A16 Series
| Part | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Finish | Primary Material | Contact Material | Shell Material | Material Flammability Rating | Orientation | Applications | Shell Size - Insert | Contact Finish - Mating | Voltage Rating | Mounting Type | Current Rating (Amps) | Backshell Material, Plating | Features | Insert Material | Color | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 7 | -25 °C | 85 °C | Male Pins Plug | Nickel | Metal | Copper Alloy | Aluminum Alloy | UL94 V-0 | N | Communication Systems Telecommunications Test Equipment & Measurement | |||||||||||
JAE Electronics | 10 | -25 °C | 85 °C | Female Sockets Plug | Nickel | Metal | Copper Alloy | Aluminum Alloy | UL94 V-0 | N | Communication Systems Telecommunications Test Equipment & Measurement | 16-10 | Silver | 250 VAC 350 V | Free Hanging (In-Line) | 5 A | Aluminum Alloy Nickel | Backshell Cable Clamp Coupling Nut | Plastic | Silver | 0.453 in | 11.51 mm |
JAE Electronics | 7 | -25 °C | 85 °C | Female Sockets Plug | Nickel | Metal | Copper Alloy | Aluminum Alloy | UL94 V-0 | N | Communication Systems Telecommunications Test Equipment & Measurement | Silver | 250 VAC 350 V | Free Hanging (In-Line) | 10 A | Aluminum Alloy Nickel | Backshell Cable Clamp Coupling Nut | Plastic | Silver | 0.453 in | 11.51 mm | |
JAE Electronics | 7 | -25 °C | 85 °C | Male Pins Plug | Nickel | Metal | Copper Alloy | Aluminum Alloy | UL94 V-0 | N | Communication Systems Telecommunications Test Equipment & Measurement | Silver | 250 VAC 350 V | Free Hanging (In-Line) | 10 A | Aluminum Alloy Nickel | Backshell Cable Clamp Coupling Nut | Plastic | Silver | 0.453 in | 11.51 mm | |
JAE Electronics | 10 | -25 °C | 85 °C | Male Pins Plug | Nickel | Metal | Copper Alloy | Aluminum Alloy | UL94 V-0 | N | Communication Systems Telecommunications Test Equipment & Measurement | 16-10 | Silver | 250 VAC 350 V | Free Hanging (In-Line) | 5 A | Aluminum Alloy Nickel | Backshell Cable Clamp Coupling Nut | Plastic | Silver | 0.453 in | 11.51 mm |
JAE Electronics | 7 | -25 °C | 85 °C | Female Sockets Plug | Nickel | Metal | Copper Alloy | Aluminum Alloy | UL94 V-0 | N | Communication Systems Telecommunications Test Equipment & Measurement |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRCN6A16 Series
7 Position Circular Connector Plug, Male Pins Solder Cup
