CY39C326PW-G-ERE1
ObsoleteInfineon Technologies
IC REG BUCK BST ADJ 800MA 20WLP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CY39C326PW-G-ERE1
ObsoleteInfineon Technologies
IC REG BUCK BST ADJ 800MA 20WLP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CY39C326PW-G-ERE1 |
|---|---|
| Current - Output | 800 mA |
| Frequency - Switching | 5.8 MHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

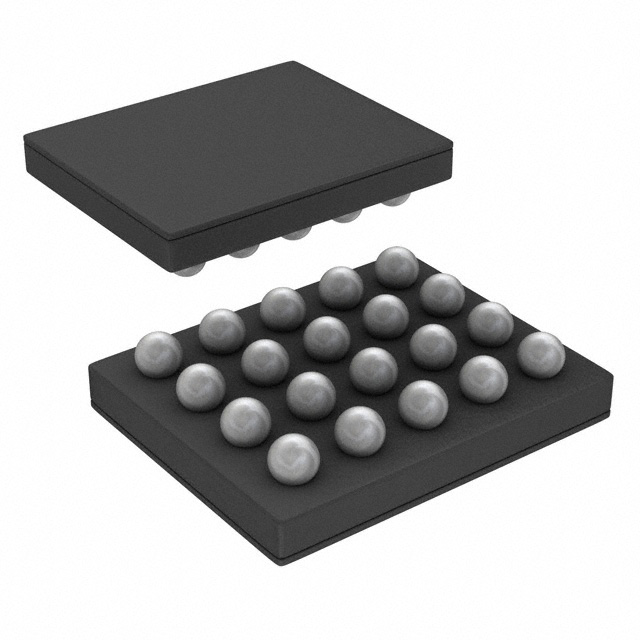

| Package / Case | 20-UFBGA, WLPBGA |
| Supplier Device Package | 20-WLP (2.15x1.94) |
| Synchronous Rectifier | True |
| Topology | Buck-Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CY39C326 Series
Buck-Boost Switching Regulator IC Positive Adjustable 0.8V 1 Output 800mA 20-UFBGA, WLPBGA
