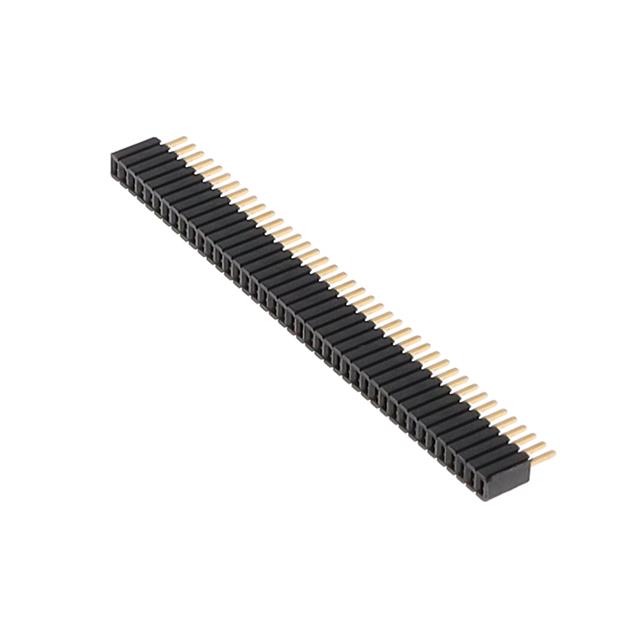

SLM-141-01-G-S

Active

Samtec Inc.

.050 MICRO STRIPS

Search across all available documentation for this part.

Active

Samtec Inc.

.050 MICRO STRIPS

Technical Specifications

Parameters and characteristics for this part

Specification	SLM-141-01-G-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	41
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Material	Connector Type	Mounting Type	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Contact Type	Contact Shape	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. SLM-141-01-T-S	105 ░C	-55 °C	Solder	41	2.92 mm	0.115 in	Liquid Crystal Polymer (LCP)	Receptacle	Through Hole	1	All	4.57 mm	0.18 "	Tin	Forked	Rectangular	Push-Pull	0.05 in	1.27 mm	Black	Phosphor Bronze
Samtec Inc. SLM-141-01-G-S	125 °C	-55 °C	Solder	41	2.92 mm	0.115 in	Liquid Crystal Polymer (LCP)	Receptacle	Through Hole	1	All	4.57 mm	0.18 "	Gold	Forked	Rectangular	Push-Pull	0.05 in	1.27 mm	Black	Phosphor Bronze	0.51 µm	20 µin	Gold	3 µin	0.076 µm
Samtec Inc. SLM-141-01-G-D	125 °C	-55 °C	Solder	82	2.92 mm	0.115 in	Liquid Crystal Polymer (LCP)	Receptacle	Through Hole	2	All	4.57 mm	0.18 "	Gold	Forked	Rectangular	Push-Pull	0.05 in	1.27 mm	Black	Phosphor Bronze	0.51 µm	20 µin	Gold	3 µin	0.076 µm	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

41 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
