25053 BK199

Active

ALPHA WIRE

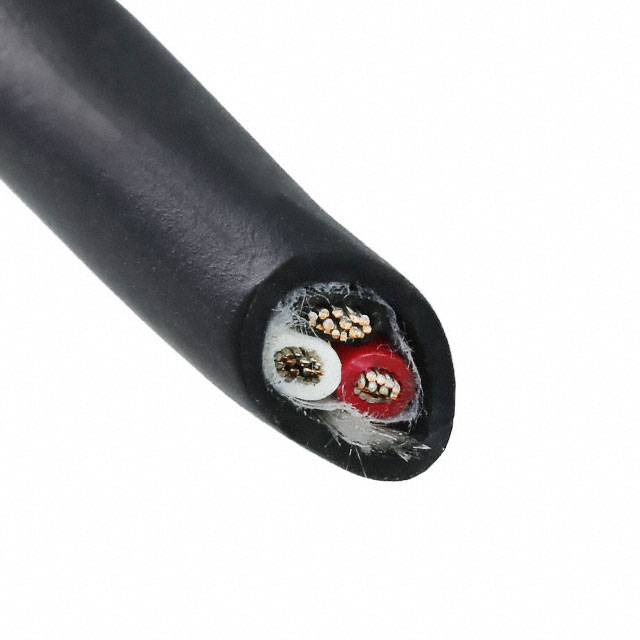

CABLE 3COND 20AWG BLACK FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 20AWG BLACK FEET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 20 AWG Enter Number of Feet in Order Quantity

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25053 BK199	25053 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.219 in	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm	5.56 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Slate, Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1000 ft
Length	-	304.8 m
Number of Conductors	3	3
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 3COND 20AWG SLATE 1000'

Part	Cable Type	Conductor Material	Jacket Color	Conductor Insulation	Length	Length	Voltage	Features	Ratings	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Spool Size	Spool Size	Length
ALPHA WIRE 25053 SL199	Multi-Conductor	Copper, Tinned	Slate	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	300 V	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	20 AWG	Polyurethane (PU)	0.219 in	5.56 mm	28	7	-30 ░C	90 °C	3
ALPHA WIRE 25053 BK199	Multi-Conductor	Copper, Tinned	Black	Poly-Vinyl Chloride (PVC)			300 V	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	20 AWG	Polyurethane (PU)	0.219 in	5.56 mm	28	7	-30 ░C	90 °C	3	1000 ft	304.8 m	Enter Number of Feet in Order Quantity
