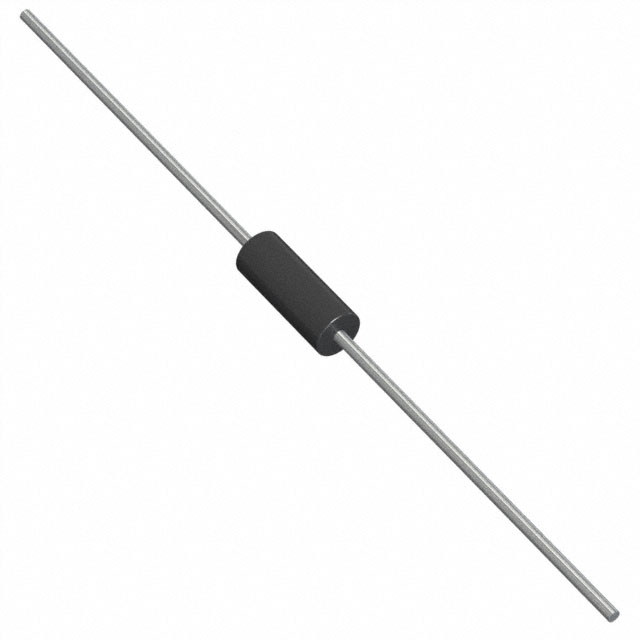

UPF25B120RV

Active

TE Connectivity Passive Product

RES 120 OHM 0.1% 1/4W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 120 OHM 0.1% 1/4W AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

RES 350 OHM 0.1% 1/4W AXIAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Number of Terminations	Resistance	Tolerance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Supplier Device Package	Package / Case	Power (Watts)	Power (Watts)	Temperature Coefficient
TE Connectivity Passive Product UPF25B350RV	-55 °C	125 °C	Metal Film	2	350 Ohms	0.1 %	2.7 mm	7 mm	0.106 "	0.276 "	Axial	Axial	0.25 W	250 mW	5 ppm/°C
TE Connectivity Passive Product UPF25B100KV	-55 °C	125 °C	Metal Film	2	100 kOhms	0.1 %	2.7 mm	7 mm	0.106 "	0.276 "	Axial	Axial	0.25 W	250 mW	5 ppm/°C
TE Connectivity Passive Product UPF25B250RV	-55 °C	125 °C	Metal Film	2	250 Ohms	0.1 %	2.7 mm	7 mm	0.106 "	0.276 "	Axial	Axial	0.25 W	250 mW	5 ppm/°C
TE Connectivity Passive Product UPF25B10KV	-55 °C	125 °C	Metal Film	2	10000 Ohms	0.1 %	2.7 mm	7 mm	0.106 "	0.276 "	Axial	Axial	0.25 W	250 mW	5 ppm/°C
TE Connectivity Passive Product UPF25B120RV	-55 °C	125 °C	Metal Film	2	120 Ohms	0.1 %	2.7 mm	7 mm	0.106 "	0.276 "	Axial	Axial	0.25 W	250 mW	5 ppm/°C
TE Connectivity Passive Product UPF25B1K0V	-55 °C	125 °C	Metal Film	2	1000 Ohms	0.1 %	2.7 mm	7 mm	0.106 "	0.276 "	Axial	Axial	0.25 W	250 mW	5 ppm/°C
TE Connectivity Passive Product UPF25B100RV	-55 °C	125 °C	Metal Film	2	100 Ohms	0.1 %	2.7 mm	7 mm	0.106 "	0.276 "	Axial	Axial	0.25 W	250 mW	5 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Ohms ±0.1% 0.25W, 1/4W Through Hole Resistor Axial Metal Film

Technical documentation and resources

No documents available
