647-15ABPE
ActiveWakefield-Vette

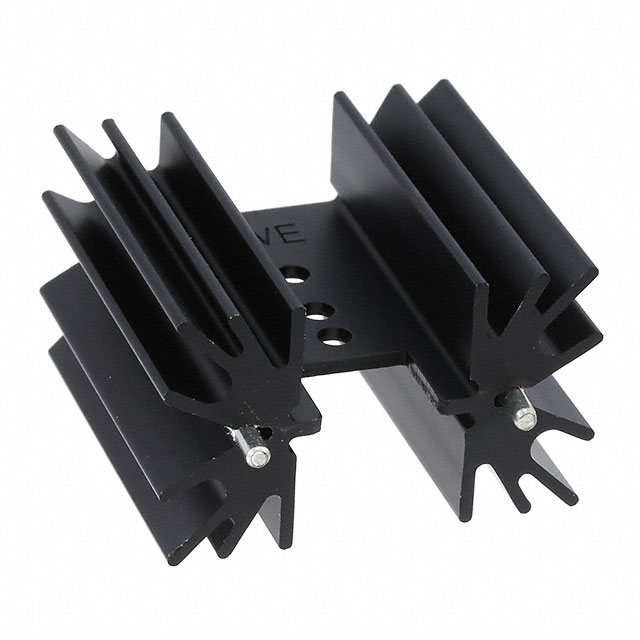

HEATSINK TO-220 W/PINS BLK 1.5"
Deep-Dive with AI
Search across all available documentation for this part.
647-15ABPE
ActiveWakefield-Vette
HEATSINK TO-220 W/PINS BLK 1.5"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 647-15ABPE |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 1 in |
| Fin Height | 25.4 mm |
| Length | 1.5 " |
| Length | 38.1 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 6 W |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Forced Air Flow | 3.5 °C/W |
| Type | Board Level, Vertical |
| Width [x] | 41.91 mm |
| Width [x] | 1.65 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.11 | |
| 10 | $ 1.87 | |||
| 25 | $ 1.78 | |||
| 50 | $ 1.72 | |||
| 200 | $ 1.60 | |||
| 400 | $ 1.54 | |||
| 600 | $ 1.51 | |||
| 1000 | $ 1.46 | |||
| 5000 | $ 1.34 | |||
Description
General part information
647-15 Series
Heat Sink TO-220 Aluminum 6.0W @ 37°C Board Level, Vertical
