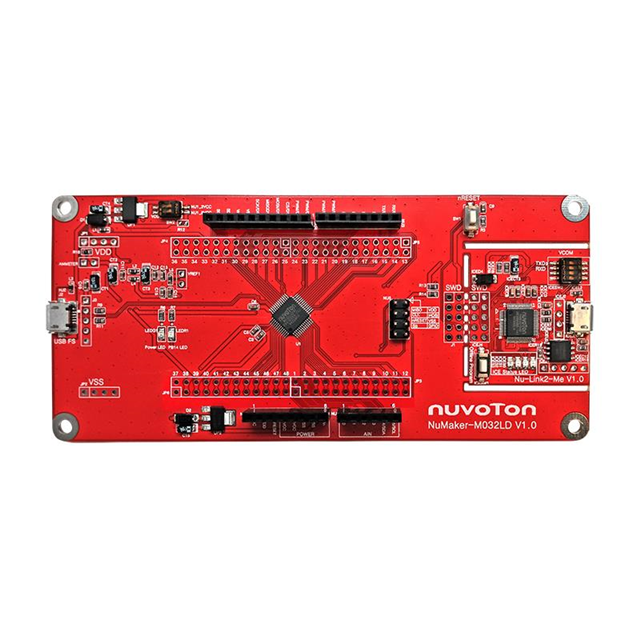

Specification	NK-M032LD

Board Type	Evaluation Platform
Contents	Board
Core Processor	ARM® Cortex®-M0
Interconnect System	Arduino R3 Shield
Mounting Type	Fixed
Platform	NuMaker
Type	MCU 32-Bit
Utilized IC / Part	M032LD2AE

M032 Series

Part	Mounting Type	Package Length	Package Name	Package Width	RAM Size Depth	RAM Size Width	Peripherals	A/D Resolution (bits)	Converter Architecture	A/D Channels	Speed	Oscillator Type	Connectivity	Number of I/O	Program Memory Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Package / Case	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	Program Memory Width	Program Memory Size	Program Memory Depth	Core Configuration	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	Board Type	Interconnect System	Platform	Type	Utilized IC / Part	Contents
Nuvoton Technology Corporation M032SIAAE	Surface Mount	7 mm	64-LQFP	7 mm	96 K	8 bit	Brown-out Detect LVD POR PWM Reset WDT	12 bit	SAR	16 count	72 MHz	Internal	EBI EMI I2C SPI UART USART USB	51	FLASH	3.6 V	2 V	64-LQFP	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit	8 bit	512 KB	512 K	Single-Core
Nuvoton Technology Corporation M032TC1AE	Surface Mount	4 mm	33-QFN	4 mm	4 K	8 bit	Brown-out Detect LVD POR PWM Reset WDT	12 bit	SAR	10 count	48 MHz	Internal	EBI EMI I2C SPI UART USART USB	23	FLASH	3.6 V	1.8 V	32-WFQFN Exposed Pad	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit	8 bit	32 KB	32 K	Single-Core
Nuvoton Technology Corporation M032LE3AE	Surface Mount	7 mm	48-LQFP	7 mm	16 K	8 bit	Brown-out Detect LVD POR PWM Reset WDT	12 bit	SAR	12 count	48 MHz	Internal	EBI EMI I2C SPI UART USART USB	38	FLASH	3.6 V	1.8 V	48-LQFP	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit				Single-Core	128 K	128KB	8
Nuvoton Technology Corporation M032KG8AE	Surface Mount	14 mm	128-LQFP	14 mm	64 K	8 bit	Brown-out Detect I2S LVD POR PWM Reset WDT	12 bit	SAR	7 count	48 MHz	Internal	EBI EMI I2C SPI UART USART USB	107	FLASH	3.6 V	1.8 V	128-LQFP	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit	8 bit	256 KB	256 K
Nuvoton Technology Corporation M032TD2AE	Surface Mount	4 mm	33-QFN	4 mm	8 K	8 bit	Brown-out Detect LVD POR Reset WDT	12 bit	SAR	10 count	48 MHz	Internal	SPI UART USART USB	23	FLASH	3.6 V	1.8 V	32-VFQFN Exposed Pad	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit	8 bit	64 KB	64 K	Single-Core
Nuvoton Technology Corporation M032LG8AE	Surface Mount	7 mm	48-LQFP	7 mm	64 K	8 bit	Brown-out Detect LVD POR PWM Reset WDT	12 bit	SAR	12 count	72 MHz	Internal	EBI EMI I2C SPI UART USART USB	38	FLASH	3.6 V	2 V	48-LQFP	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit	8 bit	256 KB	256 K	Single-Core
Nuvoton Technology Corporation NK-M032LD	Fixed																		ARM® Cortex®-M0											Evaluation Platform	Arduino R3 Shield	NuMaker	MCU 32-Bit	M032LD2AE	Board
Nuvoton Technology Corporation M032LD2AE	Surface Mount	7 mm	48-LQFP	7 mm	8 K	8 bit	Brown-out Detect LVD POR Reset WDT	12 bit	SAR	12 count	48 MHz	Internal	SPI UART USART USB	38	FLASH	3.6 V	1.8 V	48-LQFP	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit	8 bit	64 KB	64 K	Single-Core
Nuvoton Technology Corporation M032SE3AE	Surface Mount	7 mm	64-LQFP	7 mm	16 K	8 bit	Brown-out Detect LVD POR PWM Reset WDT	12 bit	SAR	16 count	48 MHz	Internal	EBI EMI I2C SPI UART USART USB	51	FLASH	3.6 V	1.8 V	64-LQFP	ARM® Cortex®-M0	105 °C	-40 °C	32 Bit				Single-Core	128 K	128KB	8
Nuvoton Technology Corporation NK-M032KG	Fixed																		ARM® Cortex®-M0											Evaluation Platform	Arduino R3 Shield	NuMaker	MCU 32-Bit	M032KG8AE	Board
