220LR11 NC032

Active

ALPHA WIRE

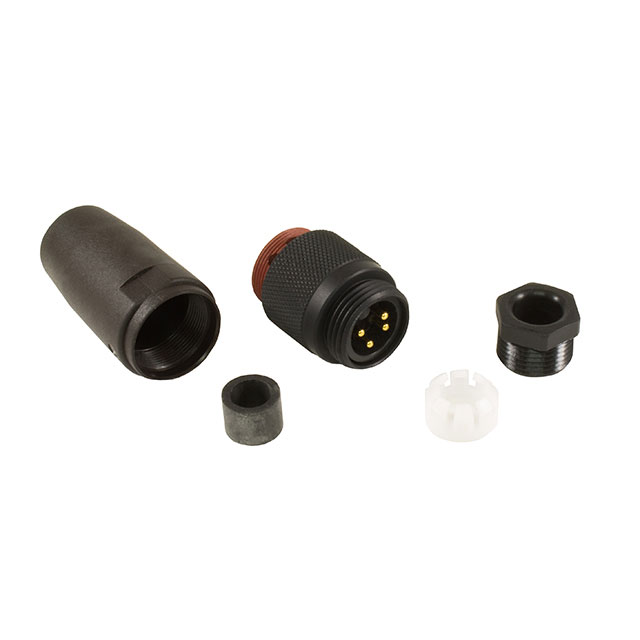

CONN PLUG MALE 4POS GOLD SCREW

Search across all available documentation for this part.

Active

ALPHA WIRE

CONN PLUG MALE 4POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

CONN PLUG MALE 4POS GOLD SCREW

Part	Shell Material	Features	Insert Material	Primary Material	Shell Finish	Applications	Color	Voltage Rating	Termination	Shielding	Shell Size - Insert	Contact Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Type	Backshell Material, Plating	Ingress Protection	Number of Positions	Orientation
ALPHA WIRE 220LR11 NC032	Aluminum	Backshell, Coupling Nut	Polyurethane (PUR)	Metal	Black Anodized	Industrial	Black	250 VDC	Screw	Unshielded	7/8"-4	Copper Alloy	Gold	90 °C	-40 °C	Free Hanging (In-Line)	Male Pins, Plug	Nylon, Polyamide (PA)	IP67 - Dust Tight, Waterproof	4	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Screw
