245046100600868+

Active

KYOCERA AVX

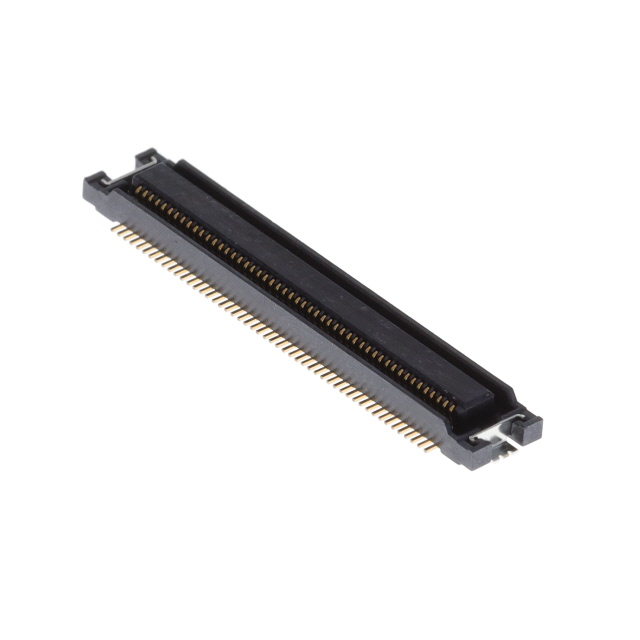

CONN RCPT 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

245046100600868+

Active

KYOCERA AVX

CONN RCPT 100POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.76
		10	$ 2.34
		100	$ 1.99
		500	$ 1.78
	Tape & Reel (TR)	1000	$ 1.73
		2000	$ 1.64
		3000	$ 1.60
		5000	$ 1.54

Description

General part information

245046 Series

100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	245046100600868+	245046 Series

Connector Type	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts
Contact Finish	Gold	Gold
Contact Finish Thickness	-	4 Áin
Contact Finish Thickness	-	0.1 Ám
Features	Pick and Place, Solder Retention	Solder Retention, Pick and Place
Height Above Board	0.098 in	0.098 in
Height Above Board	2.5 mm	2.5 mm
Mated Stacking Heights	3 mm, 3.5 mm, 4.5 mm, 4 mm	3 - 4.5 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	100	20 - 120
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

245046 Series

CONN RCPT 80POS SMD GOLD

Part	Connector Type	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Contact Finish	Number of Positions	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
KYOCERA AVX 245046080100868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	80	Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 245046120600868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	120	Pick and Place, Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 245046100600868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	100	Pick and Place, Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 245046120600829+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	120	Solder Retention	0.5 mm	0.02 in	4 Áin	0.1 Ám
KYOCERA AVX 245046080600868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	80	Pick and Place, Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 245046040000868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	40		0.5 mm	0.02 in
KYOCERA AVX 245046120100868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	120	Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 245046070600868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	70	Pick and Place, Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 245046060600829+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	60	Solder Retention	0.5 mm	0.02 in	4 Áin	0.1 Ám
KYOCERA AVX 245046020100868+	Center Strip Contacts, Receptacle	3 mm, 3.5 mm, 4 mm, 4.5 mm	2	0.098 in	2.5 mm	Surface Mount	Gold	20	Solder Retention	0.5 mm	0.02 in
