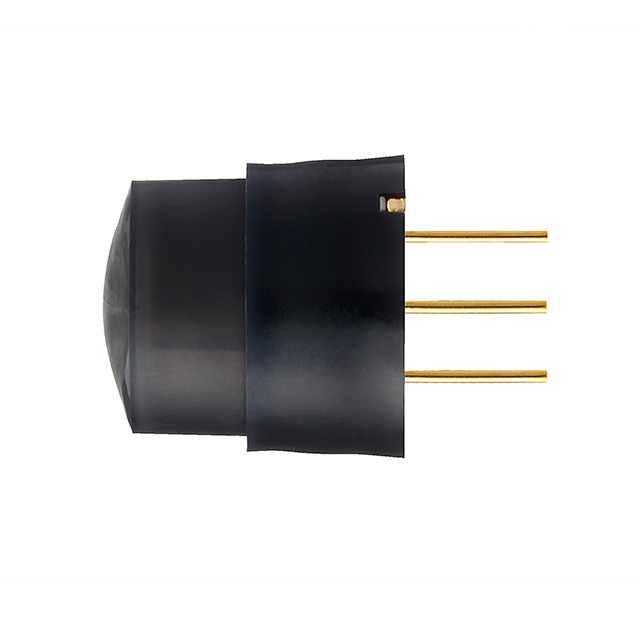

EKMC7607112K
ActivePanasonic Electric Works
LOW PROFILE LENS, 170UA, LOW SEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EKMC7607112K
ActivePanasonic Electric Works
LOW PROFILE LENS, 170UA, LOW SEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMC7607112K |
|---|---|
| Features | Low Profile Lens, Black |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Sensing Distance | 7 m |
| Sensing Distance | 275.6 in |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | Internal |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.84 | |
| 10 | $ 7.07 | |||
| 25 | $ 6.54 | |||
| 100 | $ 6.22 | |||
Description
General part information
EKMC7607112 Series
Sensor PIR (Passive Infrared) 275.6" (7m) Low Profile Lens, Black Module
