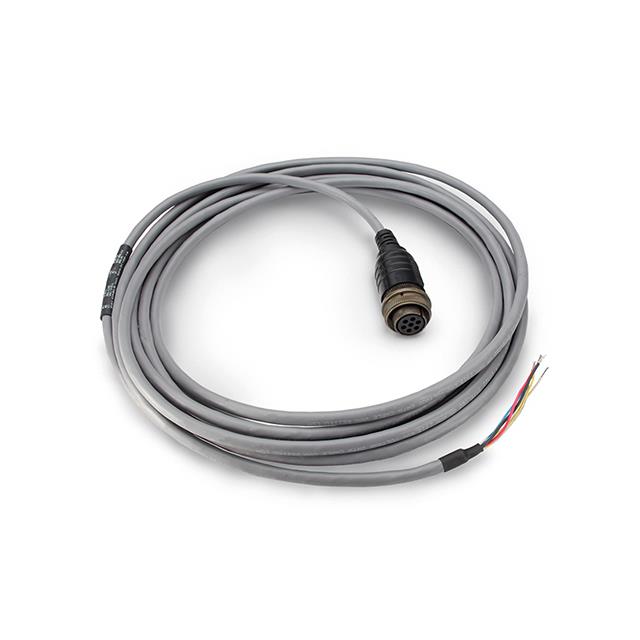

31186-1610

Active

Sensata-BEI Sensors

CIRC CBL 7POS PLUG 1'

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

CIRC CBL 7POS PLUG 1'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	31186-1610	31186 Series

1st Connector Gender	Female Sockets	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	7	7
1st Connector Number of Positions Loaded	All	All
1st Connector Shell Size - Insert	M16	M16
1st Connector Type	Plug	Plug
Accessory Type	-	Cable - Connector, Cable Assembly
Assembly Configuration	Standard	Standard
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Gray	Gray
For Use With/Related Products	-	Position Sensors and Encoders, BEI Encoders
Length	10 ft	10 - 30 '
Length	3.05 m	3.05 - 9.14 m
Shielding	Shielded	Shielded

CABLE & CONNECTOR ASSY M18 100 F

Part	Accessory Type	For Use With/Related Products	Shielding	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Gender	1st Connector Number of Positions Loaded	Length	Length	Cable Material	1st Connector Number of Positions	1st Connector Mounting Type	Cable Type	Assembly Configuration	Color
Sensata-BEI Sensors 31186-18100	Cable - Connector	Position Sensors and Encoders
Sensata-BEI Sensors 31186-18150	Cable - Connector	Position Sensors and Encoders
Sensata-BEI Sensors 31186-1630			Shielded	M16	Plug	Female Sockets	All	30 '	9.14 m	Polyvinyl Chloride (PVC)	7	Free Hanging (In-Line)	Round	Standard	Gray
Sensata-BEI Sensors 31186-1810	Cable - Connector	Position Sensors and Encoders
Sensata-BEI Sensors 31186-1410	Cable Assembly	BEI Encoders
Sensata-BEI Sensors 31186-1610			Shielded	M16	Plug	Female Sockets	All	10 ft	3.05 m	Polyvinyl Chloride (PVC)	7	Free Hanging (In-Line)	Round	Standard	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 10.00' (3.05m)
