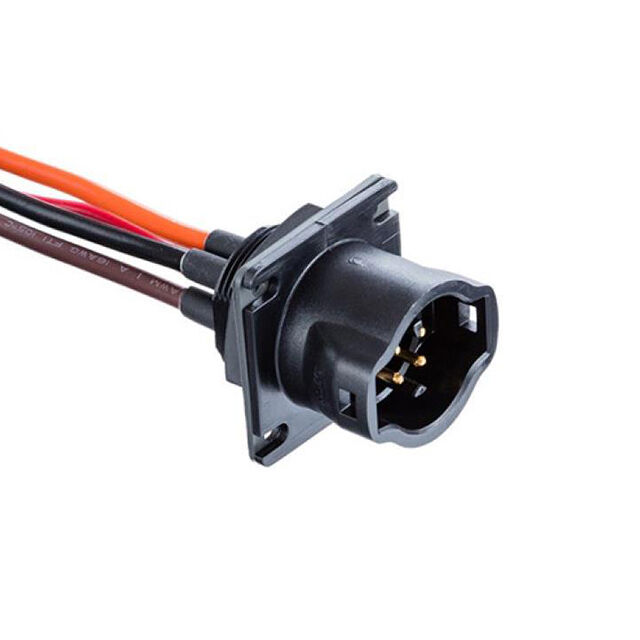

DD-14RFMC-RS7B10

Active

Amphenol LTW

CONN RCPT MAL 14P WIR LEAD 0.33'

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MAL 14P WIR LEAD 0.33'

Technical Specifications

Parameters and characteristics for this part

Specification	DD-14RFMC-RS7B10

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock, Snap-In
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyphenylene Ether (PPE), Modified
Shell Size - Insert	D
Shielding	Unshielded
Termination	Wire Leads

Part	Primary Material	Mounting Feature	Ingress Protection	Current Rating (Amps)	Termination	Shell Size - Insert	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Contact Material	Shielding	Contact Finish - Mating	Connector Type	Color	Orientation
Amphenol LTW DD-14RFMC-RS7B10	Plastic	Flange	IP67 - Dust Tight Waterproof	5 A	Wire Leads	D	Polyphenylene Ether (PPE) Modified	-40 °C	105 ░C	Latch Lock Snap-In	14	Copper Alloy	Unshielded	Gold	Male Pins Receptacle	Black	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 17.66

General part information

14 Position Circular Connector Receptacle, Male Pins Wire Leads

Technical documentation and resources

No documents available
