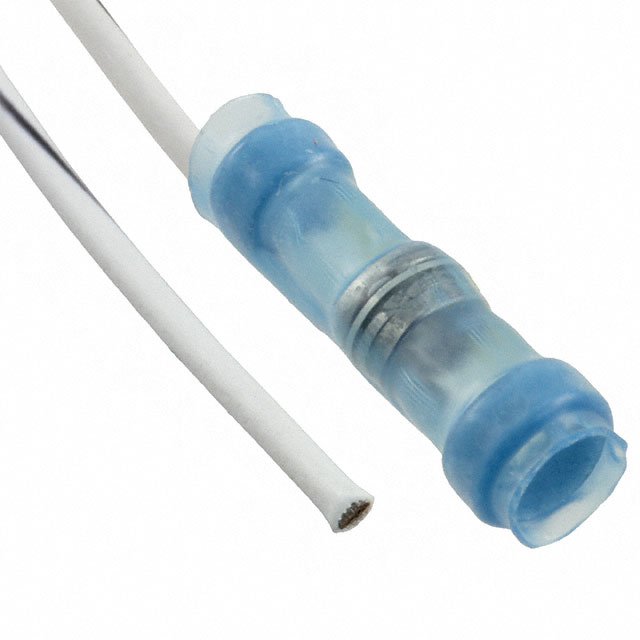

SO63-1-55-20-90 - SolderSleeve SO63 SERIES

SO63-1-55-20-90

Active
TE Connectivity Aerospace, Defense and Marine

SLDR SLV WIRE-WIRE 0.075/0.105"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
SO63-1-55-20-90 - SolderSleeve SO63 SERIES

SO63-1-55-20-90

Active
TE Connectivity Aerospace, Defense and Marine

SLDR SLV WIRE-WIRE 0.075/0.105"

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationSO63-1-55-20-90SO63 Series
ColorTransparent - BlueTransparent - Blue
Diameter2.67 mm, 1.91 mm0.17 - 2.67 in
Diameter0.075 in, 0.105 in0.075 - 5.08 mm
Diameter-0.105 - 0.145 in
Diameter-2.67 - 3.68 mm
FeaturesImmersion Resistant, Pre-Installed Lead WireImmersion Resistant, Pre-Installed Lead Wire, Pre-Installed Braid
Length16.51 mm16.51 mm
Length0.65 "0.65 "
TypeWire to WireWire to Wire

SO63 Series

SLDR SLEEVE WIRE-WIRE 0.17/0.2"

PartDiameterDiameterColorLengthLengthTypeFeaturesDiameter [diameter]Diameter [diameter]
TE Connectivity Aerospace, Defense and Marine
SO63-3-55-26-90
4.32 mm, 5.08 mm
0.17 in, 0.2 in
Transparent - Blue
16.51 mm
0.65 "
Wire to Wire
Immersion Resistant, Pre-Installed Lead Wire
TE Connectivity Aerospace, Defense and Marine
SO63-3-00
4.32 mm, 5.08 mm
0.17 in, 0.2 in
Transparent - Blue
16.51 mm
0.65 "
Wire to Wire
Immersion Resistant
TE Connectivity Aerospace, Defense and Marine
SO63-1-55-22-90
0.075 in, 0.105 in
1.91 mm, 2.67 mm
Transparent - Blue
16.51 mm
0.65 "
Wire to Wire
Immersion Resistant, Pre-Installed Lead Wire
TE Connectivity Aerospace, Defense and Marine
SO63-3-9030
4.32 mm, 5.08 mm
0.17 in, 0.2 in
Transparent - Blue
16.51 mm
0.65 "
Wire to Wire
Immersion Resistant, Pre-Installed Braid
TE Connectivity Aerospace, Defense and Marine
SO63-1-55-20-90
0.075 in, 0.105 in
1.91 mm, 2.67 mm
Transparent - Blue
16.51 mm
0.65 "
Wire to Wire
Immersion Resistant, Pre-Installed Lead Wire
TE Connectivity Aerospace, Defense and Marine
SO63-2-00
Transparent - Blue
16.51 mm
0.65 "
Wire to Wire
Immersion Resistant
0.105 ", 0.145 in
2.67 mm, 3.68 mm
TE Connectivity Aerospace, Defense and Marine
SO63-2-9030
Transparent - Blue
16.51 mm
0.65 "
Wire to Wire
Immersion Resistant, Pre-Installed Braid
0.105 ", 0.145 in
2.67 mm, 3.68 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 2000$ 1.82

Description

General part information

SO63 Series

Wire to Wire Solder Sleeve Transparent - Blue 0.075" (1.91mm), 0.105" (2.67mm)
