General part information

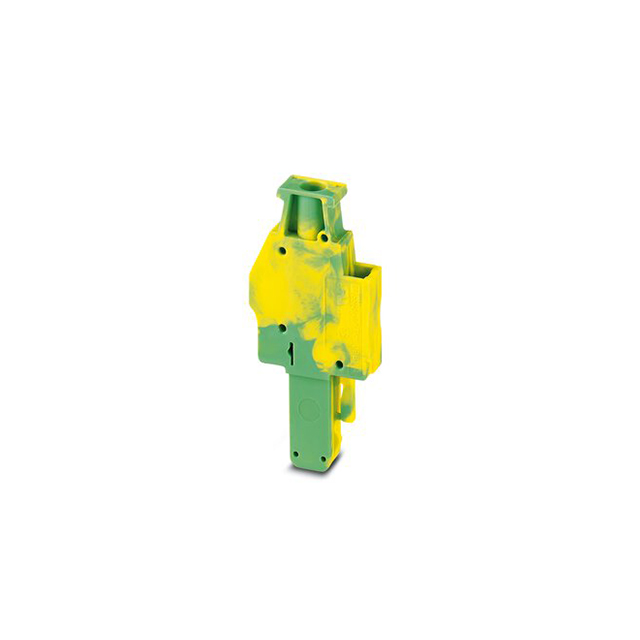

DIN Rail Terminal Blocks UPBV 4/ 1-L GNYE
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 3045732 |
|---|---|
| Color | Green, Yellow |
| Current - IEC | 32 A |
| Current - UL | 30 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 48.5 mm |
| Insulation Height | 1.909 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 1 |
| Plug Wire Entry | 90 ° |
| Positions Per Level | 1 |
| Screw Size | M3 |
| Termination Style | Screw |
| Torque - Screw [Max] | 0.8 Nm |
| Torque - Screw [Max] | 7.1 Lb-In |
| Torque - Screw [Min] | 0.6 Nm |
| Torque - Screw [Min] | 5.3 Lb-In |
| Type | Plug, Female Sockets |
| Voltage - IEC | 800 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 6 mm² |
| Wire Gauge or Range - mm² [Min] | 0.14 mm² |
| Wire Strip Length | 9 mm |
DIN Rail Terminal Blocks UPBV 4/ 1-L GNYE
| Part | Wire Strip Length | Features | Housing Material | Current - IEC | Plug Wire Entry | Positions Per Level | Torque - Screw [Min] | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Insulation Height | Insulation Height | Voltage - IEC | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Termination Style | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Type | Number of Levels | Mounting Type | Color | Screw Size | Current - UL | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3045732 | 9 mm | Interlocking (Side) | Polyamide (PA), Nylon | 32 A | 90 ° | 1 | 0.6 Nm | 0.8 Nm | 7.1 Lb-In | 5.3 Lb-In | 48.5 mm | 1.909 in | 800 V | 6 mm² | 0.14 mm² | Screw | 26 AWG | 10 AWG | Plug, Female Sockets | 1 | Free Hanging (In-Line) | Green, Yellow | M3 | 30 A | 1 | UL94 V-0 |
