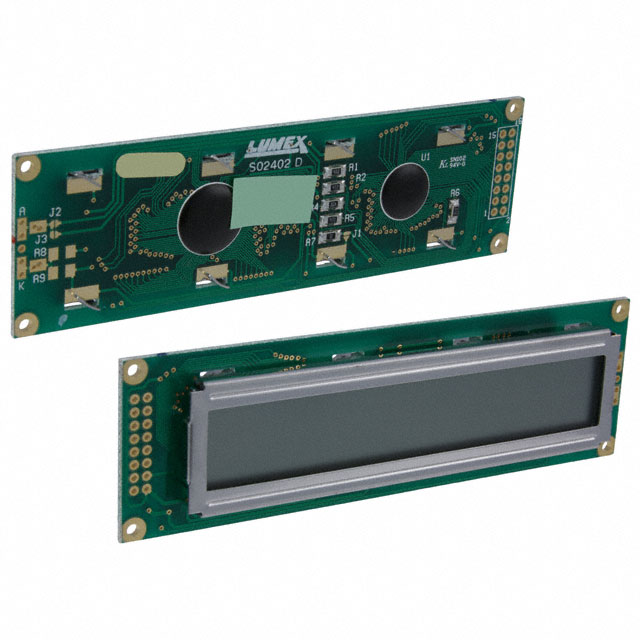

LCM-S02402DTR

Active

Lumex Opto/Components Inc.

LCD MOD 48 DIG 24 X 2 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 48 DIG 24 X 2 REFLECTIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCM-S02402DTR	LCM-S02402 Series

Background Color	-	Green
Backlight	Without Backlight	Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	3.2 mm	3.2 mm
Character Size [z]	5.55 mm	5.55 mm
Display Format [x]	24	24
Display Format [y]	2	2
Display Mode	Reflective	Transmissive, Transflective, Reflective
Display Type	TN - Twisted Nematic	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [custom]	0.65 mm	0.65 mm
Dot Size [custom]	0.6 mm	0.6 mm
Interface	Parallel	Parallel
Number of Characters	48	48
Outline L x W x H [x]	118 mm	118 mm
Outline L x W x H [y]	36 mm	36 mm
Outline L x W x H [z]	8.8 mm	8.8 - 12.7 mm
Viewing Area [x]	93.5 mm	93.5 mm
Viewing Area [y]	16 mm	16 mm

LCD MOD 48DIG 24 X 2 TRANSMISSIV

Part	Dot Size [custom]	Dot Size [custom]	Display Type	Display Format [y]	Display Format [x]	Display Mode	Viewing Area [x]	Viewing Area [y]	Character Format [y]	Character Format [x]	Character Size [z]	Character Size [y]	Backlight	Number of Characters	Interface	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Background Color
Lumex Opto/Components Inc. LCM-S02402DSM	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	2	24	Transmissive	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm	Without Backlight	48	Parallel	8.8 mm	36 mm	118 mm
Lumex Opto/Components Inc. LCM-S02402DSF	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	2	24	Transflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm		48	Parallel	12.7 mm	36 mm	118 mm	Green
Lumex Opto/Components Inc. LCM-S02402DTR	0.65 mm	0.6 mm	TN - Twisted Nematic	2	24	Reflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm	Without Backlight	48	Parallel	8.8 mm	36 mm	118 mm
Lumex Opto/Components Inc. LCM-S02402DSR	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	2	24	Reflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm	Without Backlight	48	Parallel	8.8 mm	36 mm	118 mm	Green
Lumex Opto/Components Inc. LCM-S02402DTF	0.65 mm	0.6 mm	TN - Twisted Nematic	2	24	Transflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm		48	Parallel	12.7 mm	36 mm	118 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel 118.00mm x 36.00mm x 8.80mm
