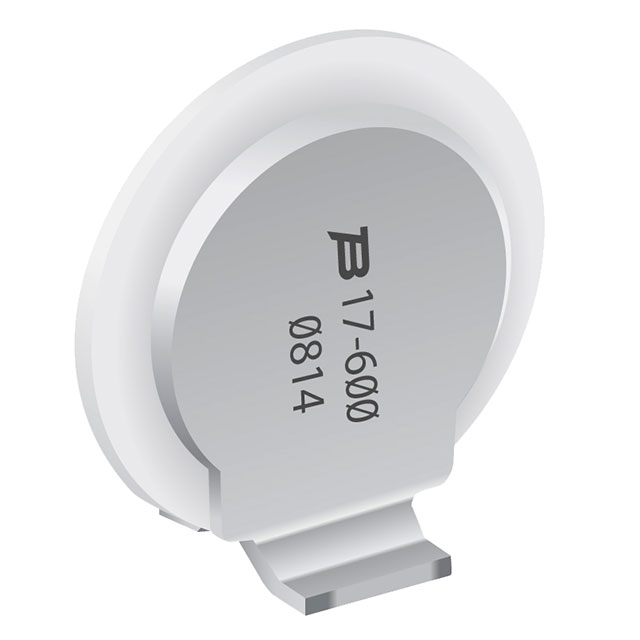

2017-42-SMC-RPLF

Active

Bourns Inc.

GDT 420V 10KA 2 POLE SMD VERT

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 420V 10KA 2 POLE SMD VERT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2017-42-SMC-RPLF	2017 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	10000 A	10000 A
Impulse Discharge Current (8/20µs)	10 kA	10 kA
Mounting Type	Surface Mount Vertical	Surface Mount Horizontal, Surface Mount Vertical
Number of Poles	2	2
Package / Case	8 mm	8 mm
Package / Case	Disc	Disc
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	420 V	90 - 500 V

FLAT GDT, HORIZONTAL, 500V /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Part	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Voltage - DC Spark Over (Nom)	Mounting Type	Tolerance	Package / Case	Package / Case	Number of Poles
Bourns Inc. 2017-50-SMH-RPLF	10000 A	10 kA	500 V	Surface Mount Horizontal	20 %	8 mm	Disc	2
Bourns Inc. 2017-09-SMH-RPLF	10000 A	10 kA	90 V	Surface Mount Horizontal	20 %	8 mm	Disc	2
Bourns Inc. 2017-15-SMH-RPLF	10000 A	10 kA	150 V	Surface Mount Horizontal	20 %	8 mm	Disc	2
Bourns Inc. 2017-35-SMC-RPLF	10000 A	10 kA	350 V	Surface Mount Vertical	20 %	8 mm	Disc	2
Bourns Inc. 2017-42-SMC-RPLF	10000 A	10 kA	420 V	Surface Mount Vertical	20 %	8 mm	Disc	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.12
	Digi-Reel®	1	$ 3.12
	Tape & Reel (TR)	1000	$ 1.41

General part information

Gas Discharge Tube 420 V 10000A (10kA) ±20% 2 Pole Surface Mount Vertical
