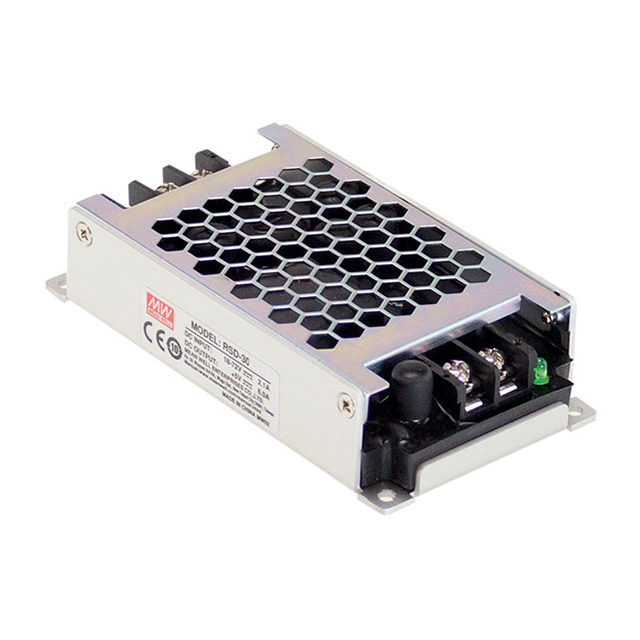

RSD-30H-3.3
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 3.3V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSD-30H-3.3
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 3.3V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSD-30H-3.3 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 87 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 4.45 in |
| Size / Dimension [x] | 113 mm |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [z] | 25 mm |
| Size / Dimension [z] | 0.98 in |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 40 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 36.22 | |
| 5 | $ 34.15 | |||
| 10 | $ 33.29 | |||
| 25 | $ 32.19 | |||
Description
General part information
RSD-30 Series
Enclosed DC DC Converter 1 Output 3.3V 6A 160V Input
