69-0.5-36

Active

3M (TC)

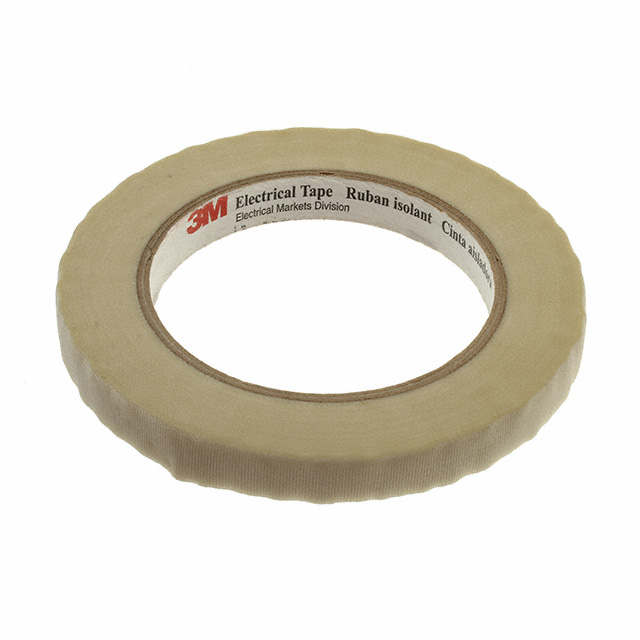

TAPE ELECTRICAL WHITE 1/2"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

69-0.5-36

Active

3M (TC)

TAPE ELECTRICAL WHITE 1/2"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	69-0.5-36

Backing, Carrier	Glass Cloth
Color	White
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range [Max]	200 °C
Temperature Range [Min]	0 °C
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	High Temperature, Insulating
Width	0.5 in
Width	12.7 mm
Width	0.5 in

3M 69 Series

Part	Tape Type	Temperature Range [Max]	Shelf Life	Color	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Length	Length	Length	Width	Width	Width	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Backing, Carrier	Adhesive	Width [x]	Width [x]	Usage	Width [y]	Width [y]	Width
3M (TC) 69-0.25-36	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft	0.25 in	0.25 in	6.35 mm	Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting
3M (TC) 69-6-36	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft				Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting	6 in	152.4 mm
3M (TC) 3M 69 2" X 36YD - WHITE	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft				Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth				High Temperature Insulating	2 "	50.8 mm
3M (TC) 3M 69 4.72" X 36YD	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft		4.72 in	120 mm	Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting
3M (TC) 69-0.125-36(2)	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft	0.125 "	0.13 in	3.18 mm	Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting
3M (TC) 3M 69 0.188" X 36YD (PK-2)	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft	4.78 mm		0.19 in	Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting						0.1875 in
3M (TC) 3M 69 11" X 36YD	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft				Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting				11 in	279.4 mm
3M (TC) 3M 69 10" X 36YD	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft			254 mm	Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting	10 in
3M (TC) 69-1.125-36	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft		1.13 in	28.58 mm	Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth	Silicone Thermosetting
3M (TC) 69-0.5-36	Electrical	200 °C	60 Months	White	0.005 "	5 mils	0.127 mm	36 yd	32.9 m	108 ft	0.5 in	0.5 in	12.7 mm	Date of Manufacture	2 mils	0.051 mm	0.002 "	27 °C 80 °F	10 °C	Glass Cloth				High Temperature Insulating

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.46
		10	$ 39.62
		25	$ 35.94
		50	$ 33.46
		100	$ 31.23
		250	$ 28.62

Description

General part information

3M 69 Series

Electrical Tape Pressure Sensitive Adhesive (PSA) Adhesive White 0.50" (12.70mm) 1/2" X 108' (32.9m) 36 yds
