MP-2016-1100-27-90

Active

Luminus Devices Inc.

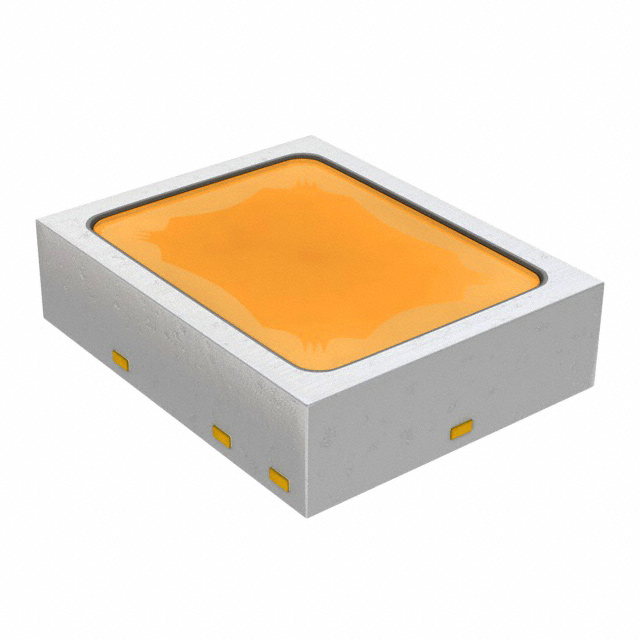

LED MP2016 WARM WHT 2700K 2016

MP-2016-1100-27-90

Active

Luminus Devices Inc.

LED MP2016 WARM WHT 2700K 2016

Description Specifications Series Pricing CAD Documents

Description

General part information

MP-2016 Series

LED Lighting MP-2016 White, Warm 2700K 3V 60mA 110° 0806 (2016 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	MP-2016-1100-27-90

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max	120 mA
Current - Test	60 mA
Flux	22 lm
Height - Seated (Max)	0.02 in
Lumens/Watt	122 lm/W
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Package Name	2016
Size / Dimension Length	0.079 in
Size / Dimension Width	0.063 in
Supplier Device Package	2016
Thermal Resistance of Package	35 °C/W
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	3 V

MP-2016 Series

Part	Thermal Resistance of Package	Size / Dimension Width	Size / Dimension Length	CRI (Color Rendering Index)	Height - Seated (Max)	Mounting Type	Package Name	Supplier Device Package	Lumens/Watt	Color	Current - Test	Package / Case	Current - Max	Flux	Viewing Angle	Voltage - Forward (Vf) (Typ)	CCT (K)
Luminus Devices Inc. MP-2016-2100-50-90	27 °C/W	0.063 in	0.079 in	90	0.02 in	Surface Mount	2016	2016	126 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	46 lm	110 °	6.1 V	5000 K
Luminus Devices Inc. MP-2016-2100-30-80	27 °C/W	0.063 in	0.079 in	80	0.02 in	Surface Mount	2016	2016	134 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	49 lm	110 °	6.1 V	3000 K
Luminus Devices Inc. MP-2016-1100-30-90	35 °C/W	0.063 in	0.079 in	90	0.02 in	Surface Mount	2016	2016	122 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	22 lm	110 °	3 V	3000 K
Luminus Devices Inc. MP-2016-1100-65-70	35 °C/W	0.063 in	0.079 in	70	0.02 in	Surface Mount	2016	2016	144 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	26 lm	110 °	3 V	6500 K
Luminus Devices Inc. MP-2016-1100-35-80	27 °C/W	0.063 in	0.079 in	80	0.02 in	Surface Mount	2016	2016	133 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	24 lm	110 °	3 V	3500 K
Luminus Devices Inc. MP-2016-2100-57-80	27 °C/W	0.063 in	0.079 in	80	0.02 in	Surface Mount	2016	2016	137 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	50 lm	110 °	6.1 V	5700 K
Luminus Devices Inc. MP-2016-1100-27-90	35 °C/W	0.063 in	0.079 in	90	0.02 in	Surface Mount	2016	2016	122 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	22 lm	110 °	3 V	2700 K
Luminus Devices Inc. MP-2016-1100-40-80	35 °C/W	0.063 in	0.079 in	80	0.02 in	Surface Mount	2016	2016	133 lm/W	Neutral White	60 mA	0806 (2016 Metric)	120 mA	24 lm	110 °	3 V	4000 K
Luminus Devices Inc. MP-2016-1100-57-80	35 °C/W	0.063 in	0.079 in	80	0.02 in	Surface Mount	2016	2016	128 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	23 lm	110 °	3 V	5700 K
Luminus Devices Inc. MP-2016-1100-22-80	27 °C/W	0.063 in	0.079 in	80	0.02 in	Surface Mount	2016	2016	111 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	20 lm	110 °	3 V	2200 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MP-2016-1100-27-90 | Datasheet
