88105 0081000

Active

Belden Inc.

MULTI-PAIR 10CON 24AWG GRY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 10CON 24AWG GRY

Technical Specifications

Parameters and characteristics for this part

Specification	88105 0081000

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.267 in
Jacket (Insulation) Diameter [diameter]	6.78 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Usage	Cable Type	Conductor Material	Features	Number of Conductors	Jacket Color	Conductor Insulation	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Shield Material	Wire Gauge	Length	Length	Jacket (Insulation) Material
Belden Inc. 88105 0081000	100 %	32 AWG	7	Foil	Computer	Multi-Pair	Copper Tinned	Drain Wire	10	Gray	Foam Fluorinated Ethylene-Propylene (FFEP)	UL Style CMP	150 °C	-20 C	0.267 in	6.78 mm	0.356 mm	0.014 in	300 V	Aluminum	24 AWG	1000 ft	304.8 m	Plenum Polyvinylidene Fluoride (PVDF)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 16.44

General part information

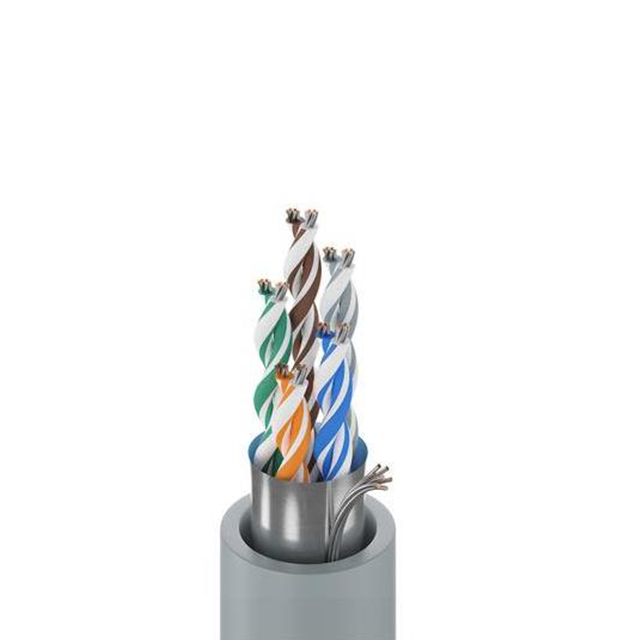

10 (5 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
