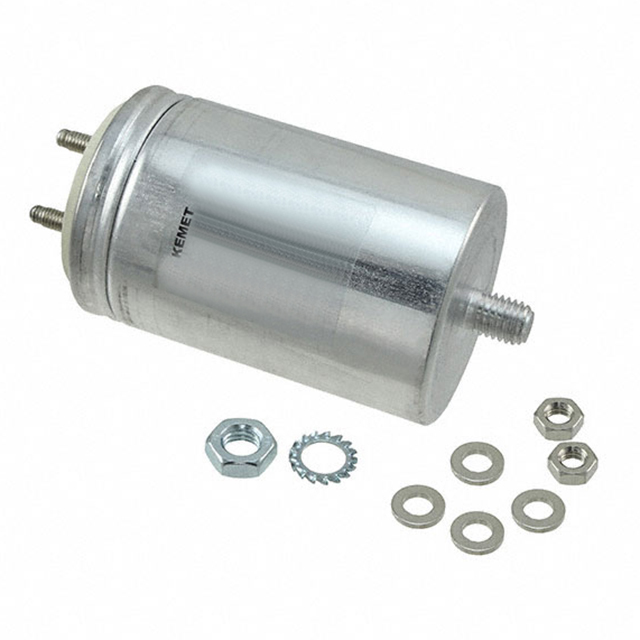

C44HKGR6100AASJ

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 1000V, 5% +TOL, 5% -TOL, 100UF, STUD MOUNT

Search across all available documentation for this part.

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 1000V, 5% +TOL, 5% -TOL, 100UF, STUD MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	C44HKGR6100AASJ

Applications	Commutation, Power Factor Correction (PFC)
Capacitance	100 µF
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life
Height - Seated (Max) [Max] [z]	5.669 in
Height - Seated (Max) [Max] [z]	144 mm
Lead Spacing	35 mm
Lead Spacing	1.378 "
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	75 mm
Size / Dimension [diameter]	2.953 in
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	440 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Dielectric Material	Lead Spacing	Lead Spacing	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Capacitance	Termination	Tolerance	Features	Voltage Rating - AC	Mounting Type
KEMET C44HKGR6100AASJ	75 mm	2.953 in	70 °C	-25 °C	5.669 in	144 mm	Commutation Power Factor Correction (PFC)	Metallized Polypropylene (PP)	35 mm	1.378 "	Radial Can	1 kVDC	1 kV	100 µF	Threaded Male	5 %	Long Life	440 V	Chassis Stud Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF Film Capacitor 440V 1000V (1kV) Polypropylene (PP), Metallized Radial, Can
