CS4385 Series

Part	Type	Resolution (Bits)	Voltage Supply Source	Number of Channels	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Data Interface	Sampling Rate (Per Second)	Package Length	Package Name	Package Width	Operating Temperature (Min)	Operating Temperature (Max)	Supplied Contents	Utilized IC / Part	Number of DAC's	Number of Bits	DAC Type	Contents
Cirrus Logic Inc. CS4385-DQZ	Audio DAC	24 b	Analog Digital	8	Surface Mount	5.25 V	2.37 V	48-LQFP	DSD PCM	216 kHz	7 mm	48-LQFP	7 mm	-40 °C	105 °C
Cirrus Logic Inc. CS4385A-DQZR	Audio DAC	24 b	Analog Digital	8	Surface Mount	5.25 V	2.3 V	48-LQFP	DSD PCM	216 kHz		48-LQFP		-40 °C	105 °C

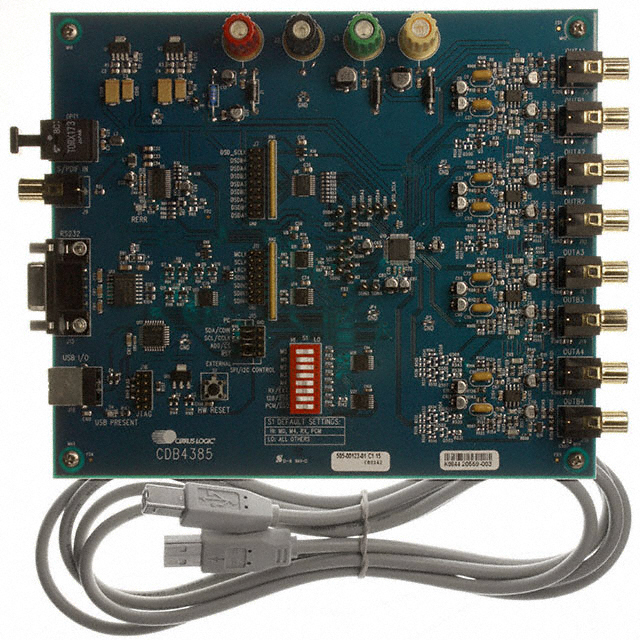

Cirrus Logic Inc. CDB4385									Serial	192 kHz						Board(s)	CDB4385	8	24 bits	Voltage	Board
Cirrus Logic Inc. CS4385-CQZR	Audio DAC	24 b	Analog Digital	8	Surface Mount	5.25 V	2.37 V	48-LQFP	DSD PCM	216 kHz	7 mm	48-LQFP	7 mm	-40 °C	85 °C
Cirrus Logic Inc. CS4385-CQZ	Audio DAC	24 b	Analog Digital	8	Surface Mount	5.25 V	2.37 V	48-LQFP	DSD PCM	216 kHz	7 mm	48-LQFP	7 mm	-40 °C	85 °C
