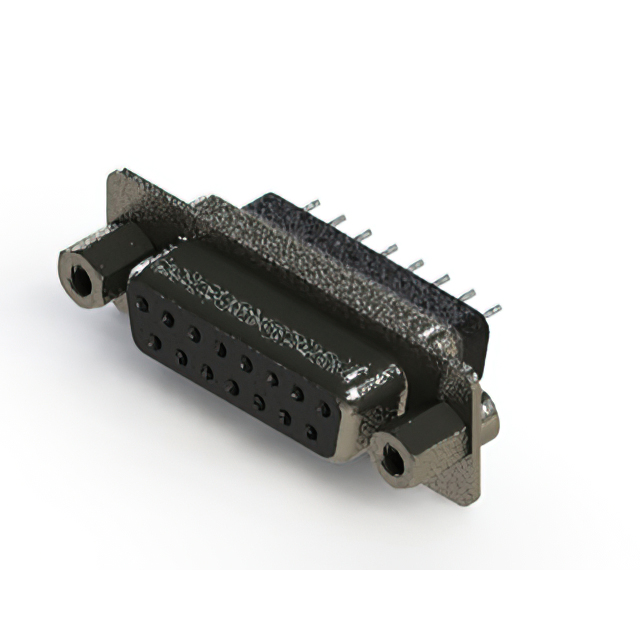

628-015-228-063

Active

EDAC Inc.

15P FEMALE STRAIGHT 2 3A -55℃~+85℃ PLUGIN D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-015-228-063

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

628-015 Series

...

Part	Contact Type	Shell Size, Connector Layout	Contact Material	Mounting Type	Number of Rows	Shell Material, Finish	Number of Positions	Connector Style	Dielectric Material	Flange Feature	Current Rating (Amps)	Contact Finish	Termination	Features	Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Contact Finish Thickness
EDAC Inc. 628-015-320-069	Signal	2	Brass	Through Hole	2	Nickel Plated Steel	15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C	15 µin	0.38 µm	UL94 V-0
EDAC Inc. 628-015-228-063	Signal	2	Brass	Through Hole	2	Nickel Plated Steel	15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C			UL94 V-0	Flash
EDAC Inc. 628-015-228-261	Signal	2	Brass	Through Hole	2		15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C			UL94 V-0	Flash
EDAC Inc. 628-015-241-276	Signal	2	Brass	Through Hole	2		15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Board Lock Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C			UL94 V-0	Flash
EDAC Inc. 628-015-621-079	Signal	2	Brass	Through Hole	2	Nickel Plated Steel	15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C	30 Áin	0.76 Ám	UL94 V-0
EDAC Inc. 628-015-010-052	Signal and Power	2	Brass	Through Hole	2	Nickel Plated Steel	15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C			UL94 V-0
EDAC Inc. 628-015-620-068	Signal	2	Brass	Through Hole	2	Nickel Plated Steel	15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C	30 Áin	0.76 Ám	UL94 V-0
EDAC Inc. 628-015-381-277	Signal	2	Brass	Through Hole	2		15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Board Lock Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C	15 µin	0.38 µm	UL94 V-0
EDAC Inc. 628-015-261-257	Signal	2	Brass	Through Hole	2		15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Board Lock Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C			UL94 V-0	Flash
EDAC Inc. 628-015-220-017	Signal and Power	2	Phosphor Bronze	Through Hole	2	Nickel Plated Steel	15	D-Sub	Polyester Thermoplastic	4-40 Board Side	3 A	Gold	Solder	Board Lock Shielded	Black	Receptacle Female Sockets	85 °C	-55 °C			UL94 V-0	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 3.06
LCSC	Piece	1	$ 7.83
		200	$ 3.03
		500	$ 2.92
		1000	$ 2.87

Description

General part information

628-015 Series

15 Position D-Sub Receptacle, Female Sockets Connector
