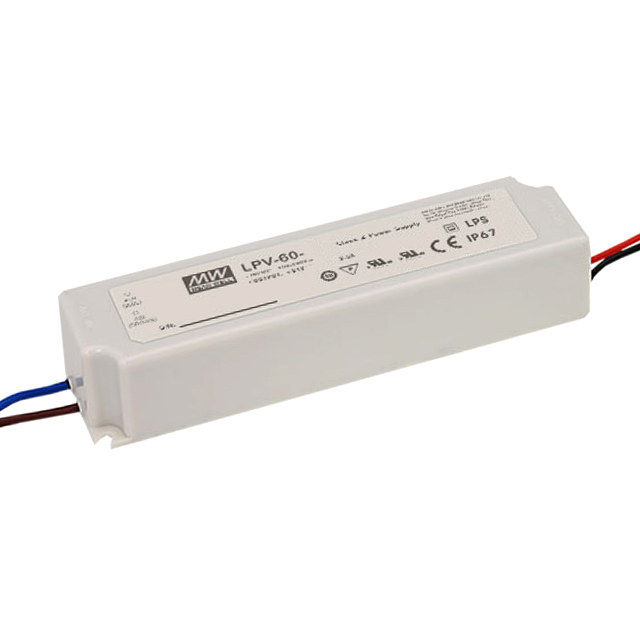

LPV-60-48

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 48V 1.25A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPV-60-48

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 48V 1.25A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPV-60-48

Approval Agency	CE, CB, UR
Current - Output (Max) [Max]	1.25 A
Efficiency	86 %
Features	SCP, OCP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Power (Watts)	60 W
Ratings	IP67
Size / Dimension [x]	6.4 in
Size / Dimension [x]	162.5 mm
Size / Dimension [y]	42.5 mm
Size / Dimension [y]	1.67 "
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Voltage
Voltage - Input (Max) [Max]	264 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output	48 V

LPV-60 Series

Part	Voltage - Input (Min) [Min]	Type	Ratings	Approval Agency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination Style	Mounting Type	Voltage - Input (Max) [Max]	Topology	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Voltage - Output	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]
MEAN WELL USA Inc. LPV-60-24	90 VAC	Constant Voltage	IP67	CB CE cURus	3000 V	70 °C	-30 ░C	OCP OVP SCP	Wire Leads	Chassis Mount	264 VAC	AC DC Converter	1	2.5 A	86 %	24 V	60 W	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "
MEAN WELL USA Inc. LPV-60-12	90 VAC	Constant Voltage	IP67	CB CE cURus	3000 V	70 °C	-30 ░C	OCP OVP SCP	Wire Leads	Chassis Mount	264 VAC	AC DC Converter	1	5 A	83 %	12 V	60 W	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "
MEAN WELL USA Inc. LPV-60-36	90 VAC	Constant Voltage	IP67	CB CE cURus	3000 V	70 °C	-30 ░C	OCP OVP SCP	Wire Leads	Chassis Mount	264 VAC	AC DC Converter	1	1.67 A	86 %	36 V	60 W	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "
MEAN WELL USA Inc. LPV-60-48	90 VAC	Constant Voltage	IP67	CB CE UR	3000 V	70 °C	-30 ░C	OCP OVP SCP	Wire Leads	Chassis Mount	264 VAC	AC DC Converter	1	1.25 A	86 %	48 V	60 W	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "
MEAN WELL USA Inc. LPV-60-15	90 VAC	Constant Voltage	IP67	CB CE cURus	3000 V	70 °C	-30 ░C	OCP OVP SCP	Wire Leads	Chassis Mount	264 VAC	AC DC Converter	1	4 A	83 %	15 VDC	60 W	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "
MEAN WELL USA Inc. LPV-60-5	90 VAC	Constant Voltage	IP67	CB CE	3000 V	70 °C	-30 ░C	OCP OVP SCP	Wire Leads	Chassis Mount	264 VAC	AC DC Converter	1	8 A	76 %	5 V	40 W	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.22
		5	$ 16.89
		10	$ 16.35
		25	$ 15.66

Description

General part information

LPV-60 Series

1.25A 48V Constant Voltage LED Driver AC DC Converter Topology 1 Output
