307-029-459-168
ActiveEDAC Inc.

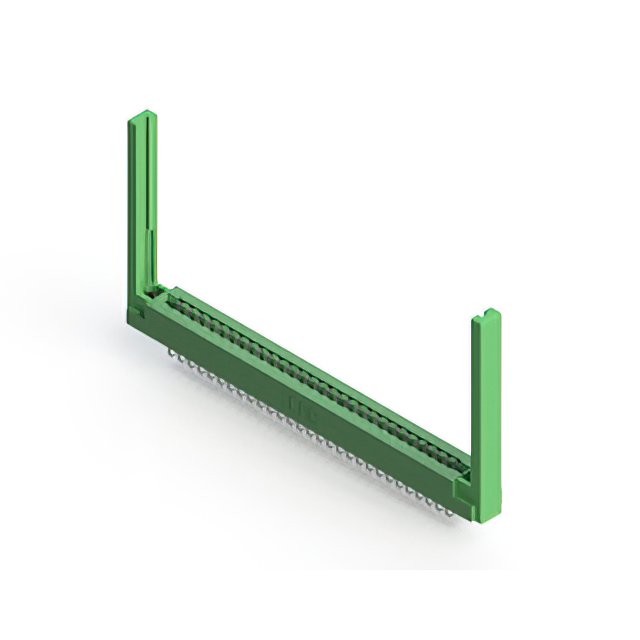

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 29 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
307-029-459-168
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 29 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-029-459-168 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 29 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
307-029 Series
...
| Part | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Number of Rows | Read Out | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row | Contact Type | Color | Termination Rows | Material - Insulation | Gender | Features | Flange Feature | Pitch [x] | Pitch [x] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Through Hole Right Angle | -40 °C | 105 ░C | Copper Alloy | Tin | 1 | Single | 29 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Single Edge | ||||
EDAC Inc. | Solder | Through Hole Right Angle | -40 °C | 105 ░C | Copper Alloy | Tin | 1 | Single | 29 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Single Edge | ||||
EDAC Inc. | Wire Wrap | Through Hole | -40 °C | 105 ░C | Copper Alloy | Gold | 1 | Single | 29 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Solder Eyelet(s) | Surface Mount | -40 °C | 105 ░C | Copper Alloy | Tin | 2 | Dual | 58 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | Through Hole Right Angle | -40 °C | 105 ░C | Copper Alloy | Tin | 1 | Single | 29 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Non Specified - Single Edge | 0.128 " | 3.25 mm | |||
EDAC Inc. | Solder Eyelet(s) | Surface Mount | -40 °C | 105 ░C | Copper Alloy | Gold | 2 | Dual | 58 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm | |
EDAC Inc. | Solder Eyelet(s) | Surface Mount | -40 °C | 105 ░C | Copper Alloy | Gold | 2 | Dual | 58 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Flush Mount Side Opening Unthreaded | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm | |
EDAC Inc. | Wire Wrap | Through Hole | -40 °C | 105 ░C | Copper Alloy | Gold | 1 | Single | 29 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm | |
EDAC Inc. | Solder | Through Hole Right Angle | -40 °C | 105 ░C | Copper Alloy | Tin | 2 | Dual | 58 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | Through Hole | -40 °C | 105 ░C | Copper Alloy | Gold | 1 | Single | 29 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 29 | Semi Bellows | Green | 1 | Polyester Thermoplastic | Female | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-029 Series
29 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
