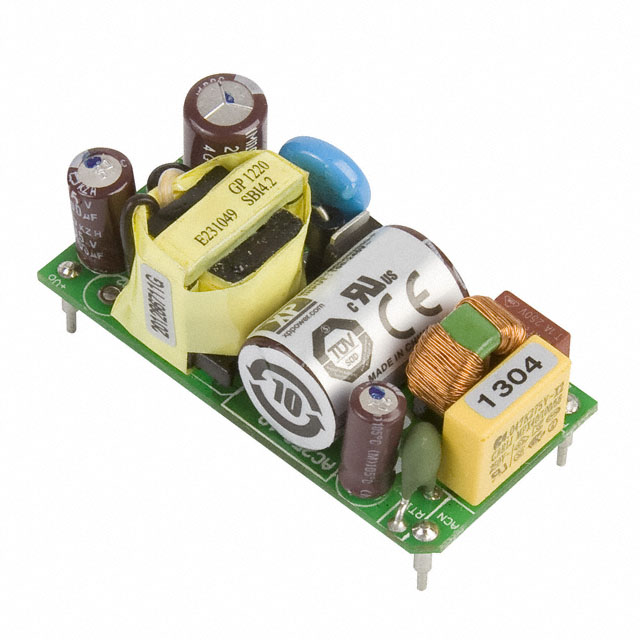

ECL05US48-P
ActiveXP POWER
AC/DC CONVERTER 48V 5W
Deep-Dive with AI
Search across all available documentation for this part.
ECL05US48-P
ActiveXP POWER
AC/DC CONVERTER 48V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECL05US48-P |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CSA, UL, cUL, IEC, EN |
| Current - Output (Max) [Max] | 100 mA |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.9 " |
| Size / Dimension [z] | 22.9 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Output 1 | 48 V |
| Weight | 0.057 lb |
| Weight | 25.85 g |
ECL05US48 Series
| Part | Current - Output (Max) [Max] | Type | Load Regulation | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Applications | Power (Watts) | Number of Outputs | Line Regulation | Standard Number | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Weight | Weight | Mounting Type | Voltage - Output 1 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XP POWER | 100 mA | Open Frame | 1 % | -20 °C | 70 °C | CSA cUL EN IEC UL | ITE (Commercial) | 5 W | 1 | 0.5 % | 62368-1 | 0.9 " | 22.9 mm | 50.8 mm | 25.4 mm | 25.4 mm | 2 in | 4-DIP Module | 0.057 lb | 25.85 g | Through Hole | 48 V | Universal Input |
XP POWER | 100 mA | Enclosed | 1 % | -20 °C | 70 °C | CSA cUL EN IEC UL | ITE (Commercial) | 5 W | 1 | 0.5 % | 62368-1 | 0.91 in | 23 mm | 52.3 mm | 1.07 in | 27.2 mm | 2.06 in | 4-DIP Module | 0.132 lb | 59.87 g | Through Hole | 48 V | Universal Input |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 8 | $ 22.64 | |
Description
General part information
ECL05US48 Series
Open Frame AC DC Converters 1 Output 48V 100mA 85 ~ 264 VAC Input
