6771115331F

Active

DIALIGHT

7MM HR/R PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HR/R PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6771115331F	6771115 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Lens Size [diameter]	4 mm	4 - 4.5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	825 mcd	825 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	25 °
Voltage	12 V	6 - 12 V
Wavelength - Peak	-	624 nm

7MM HR/R PMI-12VDC W/O-RING

Part	Voltage	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Ratings	Lamp Color	Lens Style	Current	Millicandela Rating	Ingress Protection	Panel Cutout Shape	Type	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Wavelength - Peak
DIALIGHT 6771115331F	12 V	7.11 mm	0.28 "	DC	Red	Round with Domed Top	30 mA	825 mcd	IP66, NEMA 4X	Round	LED	4 mm
DIALIGHT 6771115321F	6 V			DC	Red	Round with Domed Top	30 mA		IP66, NEMA 4X	Round	LED	4.5 mm	7.2 mm	0.28 in	25 °	624 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

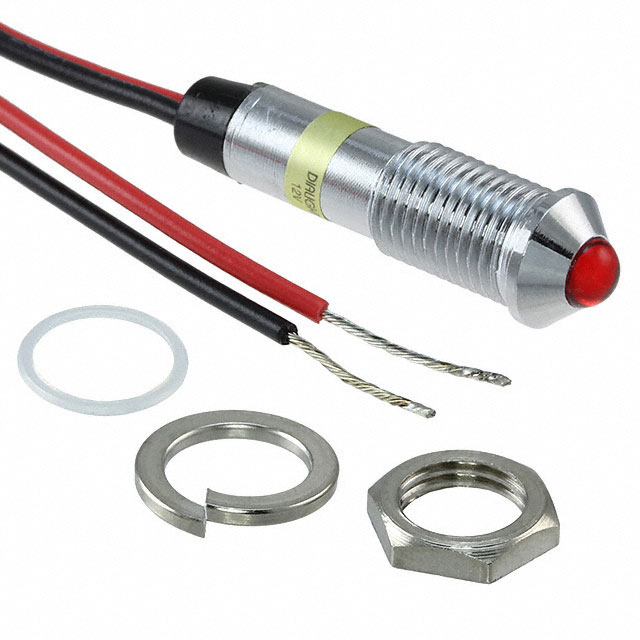

LED Panel Indicator Red 12V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
